Accessories for Pressure Sensors

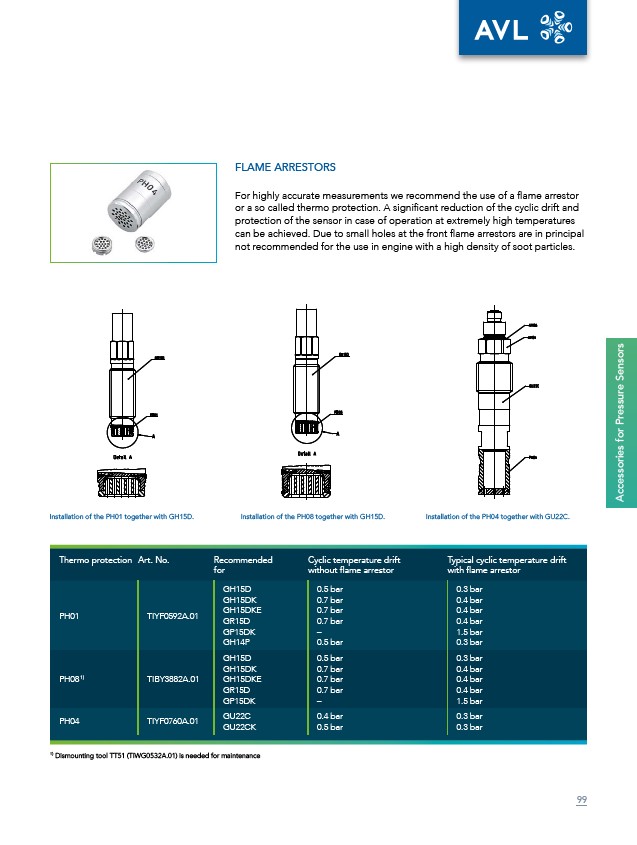

FLAME ARRESTORS
For highly accurate measurements we recommend the use of a flame arrestor
or a so called thermo protection. A significant reduction of the cyclic drift and
protection of the sensor in case of operation at extremely high temperatures
can be achieved. Due to small holes at the front flame arrestors are in principal
not recommended for the use in engine with a high density of soot particles.
Installation of the PH01 together with GH15D. Installation of the PH08 together with GH15D. Installation of the PH04 together with GU22C.
Thermo protection Art. No. Recommended
for
1) Dismounting tool TT51 (TIWG0532A.01) is needed for maintenance
Cyclic temperature drift
without flame arrestor
Typical cyclic temperature drift
with flame arrestor
PH01 TIYF0592A.01
GH15D
GH15DK
GH15DKE
GR15D
GP15DK
GH14P
0.5 bar
0.7 bar
0.7 bar
0.7 bar
–
0.5 bar
0.3 bar
0.4 bar
0.4 bar
0.4 bar
1.5 bar
0.3 bar
PH08 1) TIBY3882A.01
GH15D
GH15DK
GH15DKE
GR15D
GP15DK
0.5 bar
0.7 bar
0.7 bar
0.7 bar
–
0.3 bar
0.4 bar
0.4 bar
0.4 bar
1.5 bar
PH04 TIYF0760A.01
GU22C
GU22CK
0.4 bar
0.5 bar
0.3 bar
0.3 bar
