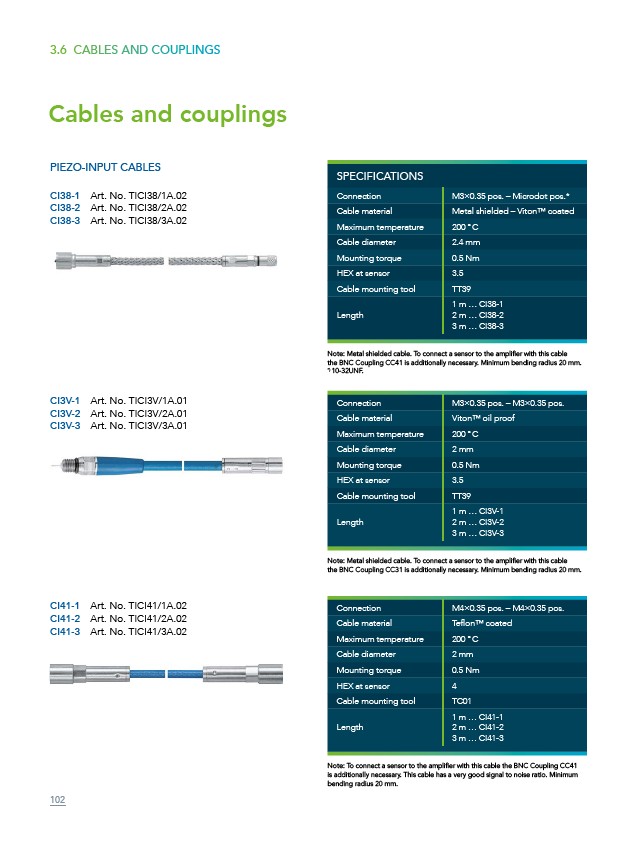

Cables and couplings
CI41-1 Art. No. TICI41/1A.02
CI41-2 Art. No. TICI41/2A.02
CI41-3 Art. No. TICI41/3A.02
Connection M4×0.35 pos. – M4×0.35 pos.
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 4
Cable mounting tool TC01
Length
1 m … CI41-1
2 m … CI41-2
3 m … CI41-3
Note: To connect a sensor to the amplifier with this cable the BNC Coupling CC41
is additionally necessary. This cable has a very good signal to noise ratio. Minimum
bending radius 20 mm.
CI3V-1 Art. No. TICI3V/1A.01
CI3V-2 Art. No. TICI3V/2A.01
CI3V-3 Art. No. TICI3V/3A.01
Connection M3×0.35 pos. – M3×0.35 pos.
Cable material Viton™ oil proof
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TT39
Length
1 m … CI3V-1
2 m … CI3V-2
3 m … CI3V-3
Note: Metal shielded cable. To connect a sensor to the amplifier with this cable
the BNC Coupling CC31 is additionally necessary. Minimum bending radius 20 mm.
PIEZO-INPUT CABLES
CI38-1 Art. No. TICI38/1A.02
CI38-2 Art. No. TICI38/2A.02
CI38-3 Art. No. TICI38/3A.02
SPECIFICATIONS
Connection M3×0.35 pos. – Microdot pos.*
Cable material Metal shielded – Viton™ coated
Maximum temperature 200 ° C
Cable diameter 2.4 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TT39
Length
1 m … CI38-1
2 m … CI38-2
3 m … CI38-3
Note: Metal shielded cable. To connect a sensor to the amplifier with this cable
the BNC Coupling CC41 is additionally necessary. Minimum bending radius 20 mm.
*) 10-32UNF.
3.6 CABLES AND COUPLINGS
