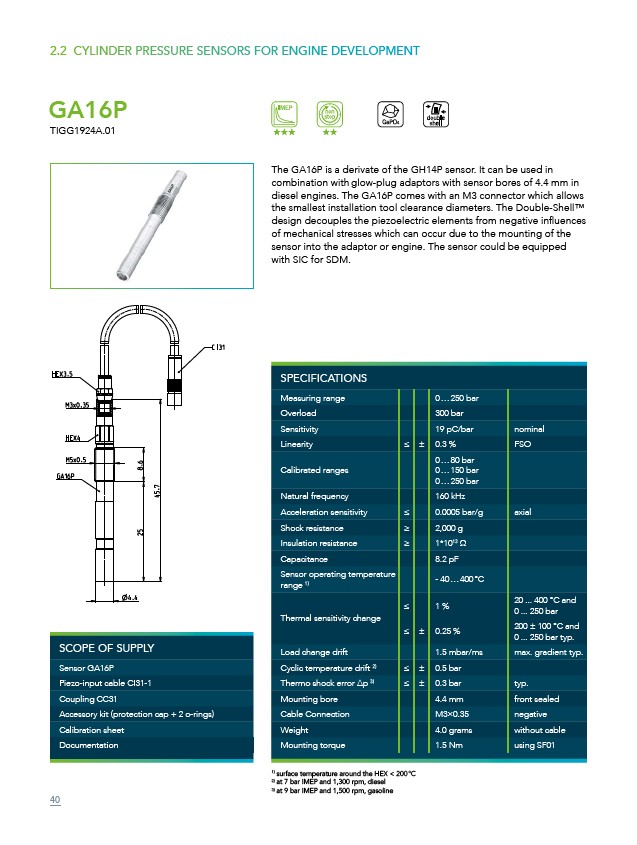

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GA16P
TIGG1924A.01
The GA16P is a derivate of the GH14P sensor. It can be used in
combination with glow-plug adaptors with sensor bores of 4.4 mm in
diesel engines. The GA16P comes with an M3 connector which allows
the smallest installation tool clearance diameters. The Double-Shell™
design decouples the piezoelectric elements from negative influences
of mechanical stresses which can occur due to the mounting of the
sensor into the adaptor or engine. The sensor could be equipped
with SIC for SDM.
SPECIFICATIONS
Measuring range 0 … 250 bar
Overload 300 bar
Sensitivity 19 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 250 bar
Natural frequency 160 kHz
Acceleration sensitivity ≤ 0.0005 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 8.2 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
1 %
0.25 %
20 ... 400 °C and
0 ... 250 bar
200 ± 100 °C and
0 ... 250 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.5 bar
Thermo shock error Δp 3) ≤ ± 0.3 bar typ.
Mounting bore 4.4 mm front sealed
Cable Connection M3×0.35 negative
Weight 4.0 grams without cable
Mounting torque 1.5 Nm using SF01
SCOPE OF SUPPLY
Sensor GA16P
Piezo-input cable CI31-1
Coupling CC31
Accessory kit (protection cap + 2 o-rings)
Calibration sheet
Documentation
