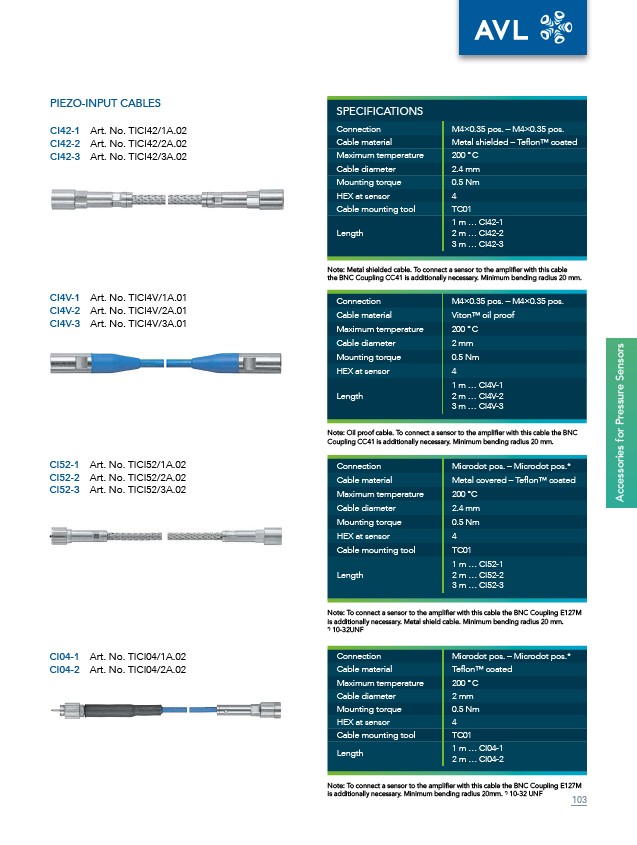

Accessories for Pressure Sensors
SPECIFICATIONS
Connection M4×0.35 pos. – M4×0.35 pos.
Cable material Metal shielded – Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2.4 mm
Mounting torque 0.5 Nm
HEX at sensor 4
Cable mounting tool TC01
Length
1 m … CI42-1
2 m … CI42-2
3 m … CI42-3
Note: Metal shielded cable. To connect a sensor to the amplifier with this cable
the BNC Coupling CC41 is additionally necessary. Minimum bending radius 20 mm.
PIEZO-INPUT CABLES
CI42-1 Art. No. TICI42/1A.02
CI42-2 Art. No. TICI42/2A.02
CI42-3 Art. No. TICI42/3A.02
CI4V-1 Art. No. TICI4V/1A.01
CI4V-2 Art. No. TICI4V/2A.01
CI4V-3 Art. No. TICI4V/3A.01
Connection M4×0.35 pos. – M4×0.35 pos.
Cable material Viton™ oil proof
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 4
Length
1 m … CI4V-1
2 m … CI4V-2
3 m … CI4V-3
Note: Oil proof cable. To connect a sensor to the amplifier with this cable the BNC
Coupling CC41 is additionally necessary. Minimum bending radius 20 mm.
CI52-1 Art. No. TICI52/1A.02
CI52-2 Art. No. TICI52/2A.02
CI52-3 Art. No. TICI52/3A.02
Connection Microdot pos. – Microdot pos.*
Cable material Metal covered – Teflon™ coated
Maximum temperature 200 °C
Cable diameter 2.4 mm
Mounting torque 0.5 Nm
HEX at sensor 4
Cable mounting tool TC01
Length
1 m … CI52-1
2 m … CI52-2
3 m … CI52-3
Note: To connect a sensor to the amplifier with this cable the BNC Coupling E127M
is additionally necessary. Metal shield cable. Minimum bending radius 20 mm.
*) 10-32UNF
CI04-1 Art. No. TICI04/1A.02
CI04-2 Art. No. TICI04/2A.02
Connection Microdot pos. – Microdot pos.*
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 4
Cable mounting tool TC01
Length
1 m … CI04-1
2 m … CI04-2
Note: To connect a sensor to the amplifier with this cable the BNC Coupling E127M
is additionally necessary. Minimum bending radius 20mm. *) 10-32 UNF
103
