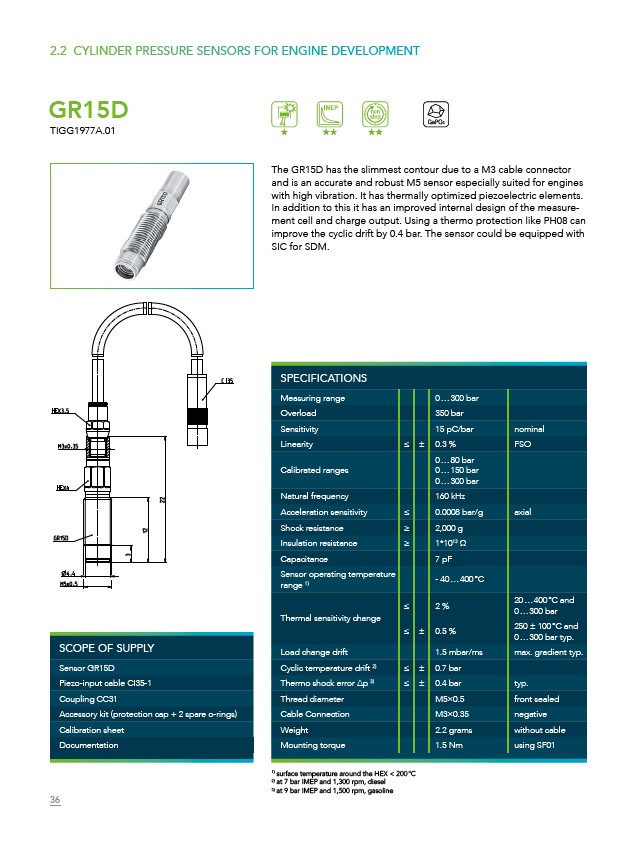

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GR15D
TIGG1977A.01
The GR15D has the slimmest contour due to a M3 cable connector
and is an accurate and robust M5 sensor especially suited for engines
with high vibration. It has thermally optimized piezoelectric elements.
In addition to this it has an improved internal design of the measurement
cell and charge output. Using a thermo protection like PH08 can
improve the cyclic drift by 0.4 bar. The sensor could be equipped with
SIC for SDM.
SPECIFICATIONS
Measuring range 0 … 300 bar
Overload 350 bar
Sensitivity 15 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 160 kHz
Acceleration sensitivity ≤ 0.0008 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
2 %
0.5 %
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.7 bar
Thermo shock error Δp 3) ≤ ± 0.4 bar typ.
Thread diameter M5×0.5 front sealed
Cable Connection M3×0.35 negative
Weight 2.2 grams without cable
Mounting torque 1.5 Nm using SF01
SCOPE OF SUPPLY
Sensor GR15D
Piezo-input cable CI35-1
Coupling CC31
Accessory kit (protection cap + 2 spare o-rings)
Calibration sheet
Documentation
