Pressure Sensors
3

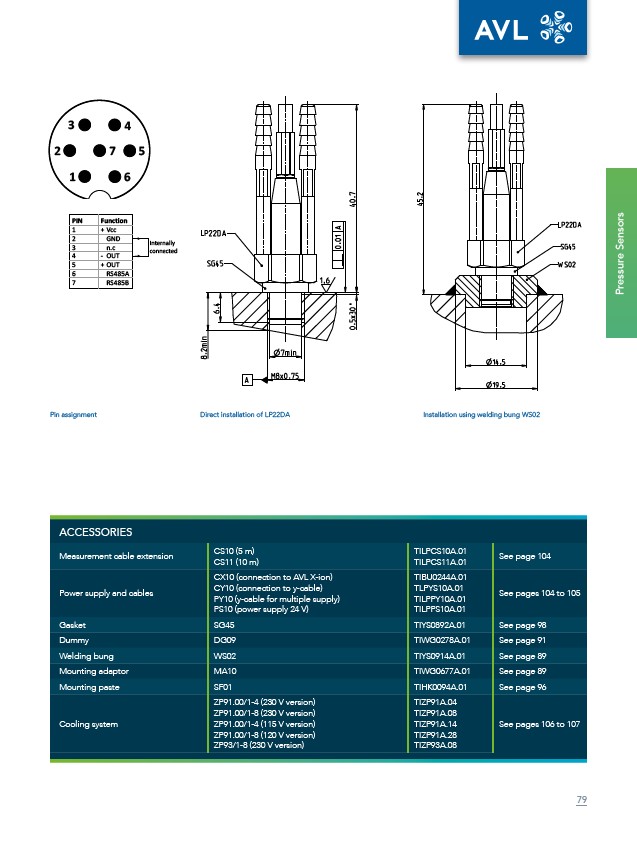

Pin assignment Direct installation of LP22DA Installation using welding bung WS02
ACCESSORIES
Measurement cable extension
CS10 (5 m)
CS11 (10 m)
TILPCS10A.01
TILPCS11A.01
See page 104
Power supply and cables
CX10 (connection to AVL X-ion)
CY10 (connection to y-cable)
PY10 (y-cable for multiple supply)
PS10 (power supply 24 V)
TIBU0244A.01
TLPYS10A.01
TILPPY10A.01
TILPPS10A.01
See pages 104 to 105
Gasket SG45 TIYS0892A.01 See page 98
Dummy DG09 TIWG0278A.01 See page 91
Welding bung WS02 TIYS0914A.01 See page 89
Mounting adaptor MA10 TIWG0677A.01 See page 89
Mounting paste SF01 TIHK0094A.01 See page 96
Cooling system
ZP91.00/1-4 (230 V version)
ZP91.00/1-8 (230 V version)
ZP91.00/1-4 (115 V version)
ZP91.00/1-8 (120 V version)
ZP93/1-8 (230 V version)
TIZP91A.04
TIZP91A.08
TIZP91A.14
TIZP91A.28
TIZP93A.08
See pages 106 to 107
4
2
1
7
6
5
PIN Function
1 + Vcc
2 GND
3 n.c
4 - OUT
5 + OUT
6 RS485A
7 RS485B
Internally
connected
79
