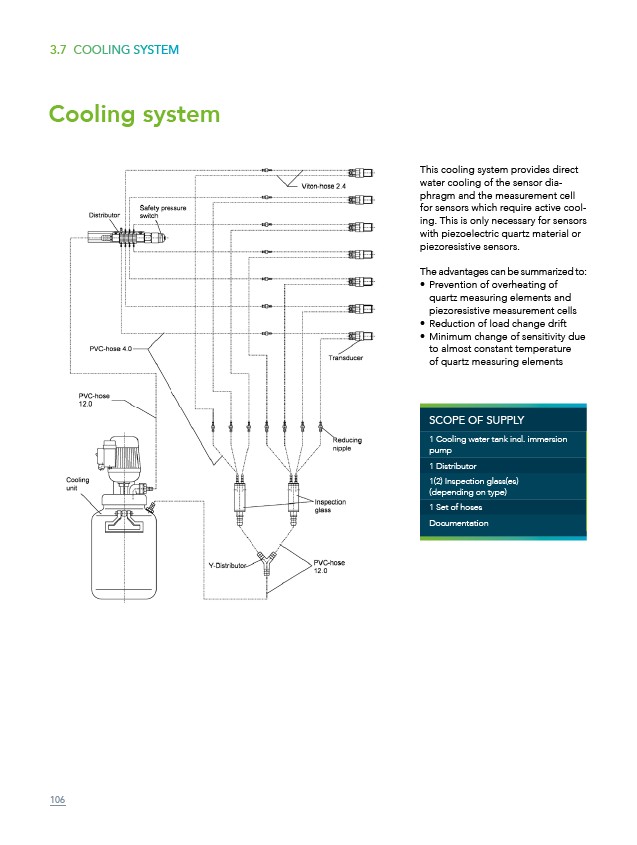

Cooling system
This cooling system provides direct
water cooling of the sensor diaphragm
and the measurement cell
for sensors which require active cooling.
This is only necessary
for sensors
with piezoelectric quartz material or
piezoresistive sensors.
The advantages can be summarized
to:
• Prevention of overheating of
quartz measuring elements and
piezoresistive measurement cells
• Reduction of load change drift
• Minimum change of sensitivity
due
to almost constant temperature
of quartz measuring elements
SCOPE OF SUPPLY
1 Cooling water tank incl. immersion
pump
1 Distributor
1(2) Inspection glass(es)
(depending on type)
1 Set of hoses
Documentation
