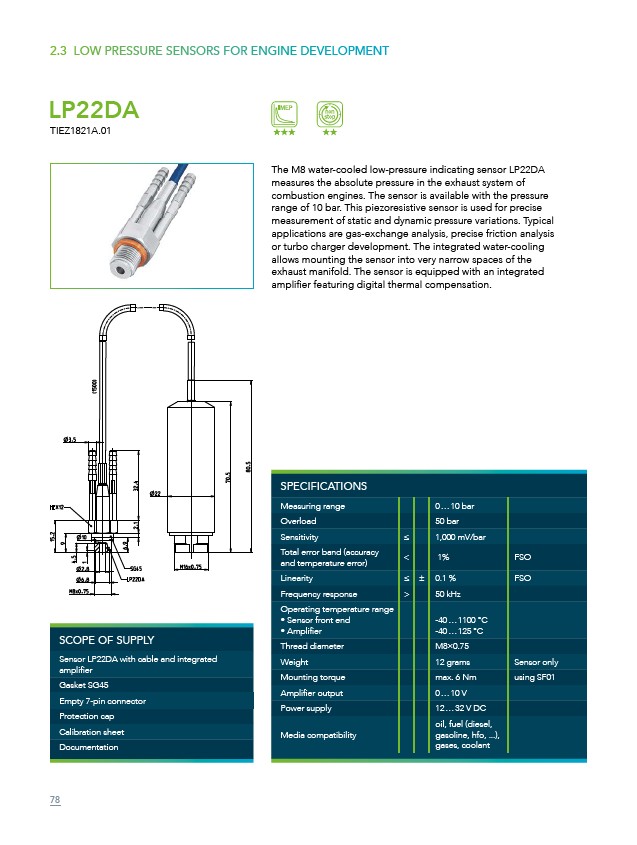

2.3 LOW PRESSURE SENSORS FOR ENGINE DEVELOPMENT
LP22DA
TIEZ1821A.01
The M8 water-cooled low-pressure indicating sensor LP22DA
measures the absolute pressure in the exhaust system of
combustion engines. The sensor is available with the pressure
range of 10 bar. This piezoresistive sensor is used for precise
measurement of static and dynamic pressure variations. Typical
applications are gas-exchange analysis, precise friction analysis
or turbo charger development. The integrated water-cooling
allows mounting the sensor into very narrow spaces of the
exhaust manifold. The sensor is equipped with an integrated
amplifier featuring digital thermal compensation.
SPECIFICATIONS
Measuring range 0 … 10 bar
Overload 50 bar
Sensitivity ≤ 1,000 mV/bar
Total error band (accuracy
and temperature error)
< 1% FSO
Linearity ≤ ± 0.1 % FSO
Frequency response > 50 kHz
Operating temperature range
• Sensor front end
-40 … 1100 °C
• Amplifier
-40 … 125 °C
Thread diameter M8×0.75
Weight 12 grams Sensor only
Mounting torque max. 6 Nm using SF01
Amplifier output 0 … 10 V
Power supply 12 … 32 V DC
Media compatibility
oil, fuel (diesel,
gasoline, hfo, ...),
gases, coolant
SCOPE OF SUPPLY
Sensor LP22DA with cable and integrated
amplifier
Gasket SG45
Empty 7-pin connector
Protection cap
Calibration sheet
Documentation
