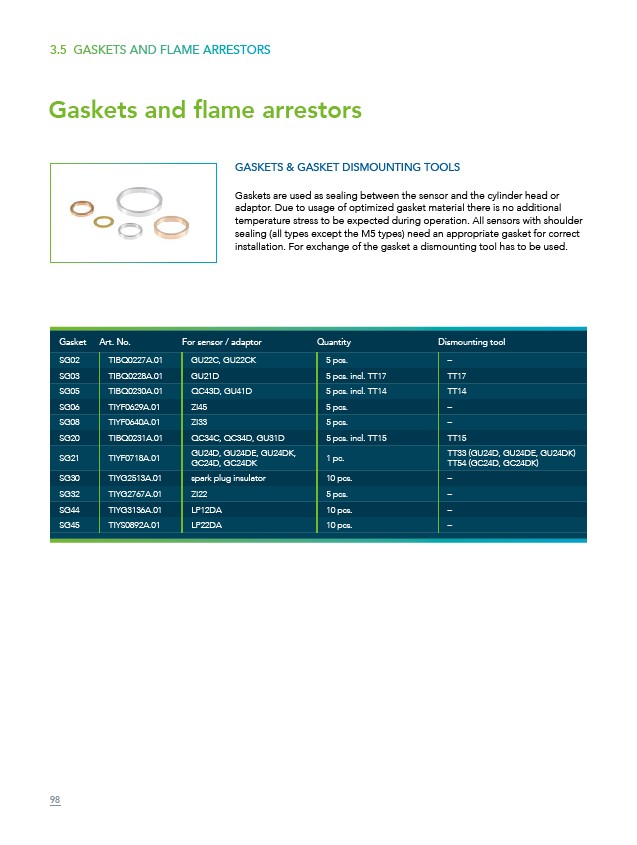

3.5 GASKETS AND FLAME ARRESTORS
Gaskets and flame arrestors
GASKETS & GASKET DISMOUNTING TOOLS
Gaskets are used as sealing between the sensor and the cylinder head or
adaptor. Due to usage of optimized gasket material there is no additional
temperature stress to be expected during operation. All sensors with shoulder
sealing (all types except the M5 types) need an appropriate gasket for correct
installation. For exchange of the gasket a dismounting tool has to be used.
Gasket Art. No. For sensor / adaptor Quantity Dismounting tool
SG02 TIBQ0227A.01 GU22C, GU22CK 5 pcs. –
SG03 TIBQ0228A.01 GU21D 5 pcs. incl. TT17 TT17
SG05 TIBQ0230A.01 QC43D, GU41D 5 pcs. incl. TT14 TT14
SG06 TIYF0629A.01 ZI45 5 pcs. –
SG08 TIYF0640A.01 ZI33 5 pcs. –
SG20 TIBQ0231A.01 QC34C, QC34D, GU31D 5 pcs. incl. TT15 TT15
SG21 TIYF0718A.01 GU24D, GU24DE, GU24DK,
GC24D, GC24DK 1 pc. TT33 (GU24D, GU24DE, GU24DK)
TT54 (GC24D, GC24DK)
SG30 TIYG2513A.01 spark plug insulator 10 pcs. –
SG32 TIYG2767A.01 ZI22 5 pcs. –
SG44 TIYG3136A.01 LP12DA 10 pcs. –
SG45 TIYS0892A.01 LP22DA 10 pcs. –
