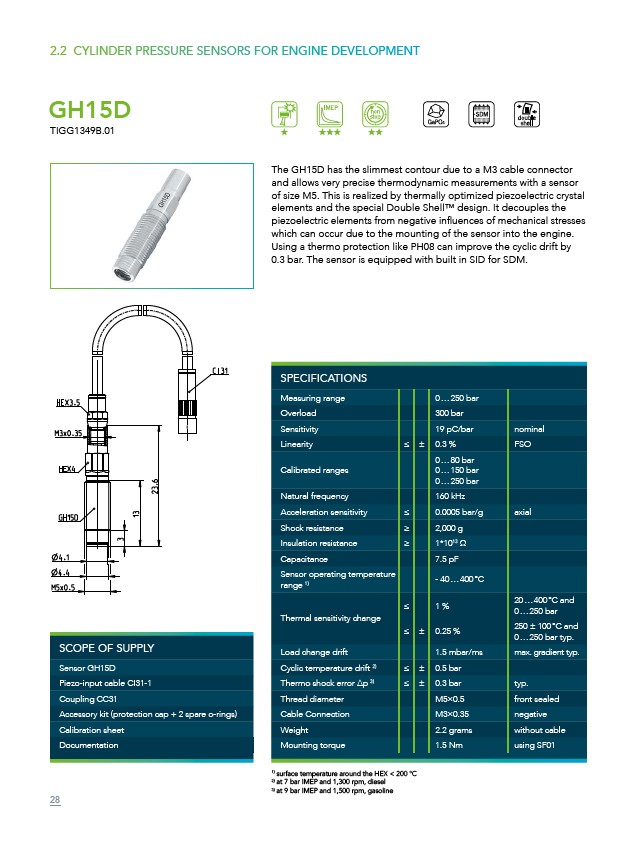

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GH15D
TIGG1349B.01
The GH15D has the slimmest contour due to a M3 cable connector
and allows very precise thermodynamic measurements with a sensor
of size M5. This is realized by thermally optimized piezoelectric crystal
elements and the special Double Shell™ design. It decouples the
piezoelectric elements from negative influences of mechanical stresses
which can occur due to the mounting of the sensor into the engine.
Using a thermo protection like PH08 can improve the cyclic drift by
0.3 bar. The sensor is equipped with built in SID for SDM.
SCOPE OF SUPPLY
Sensor GH15D
Piezo-input cable CI31-1
Coupling CC31
Accessory kit (protection cap + 2 spare o-rings)
Calibration sheet
Documentation
SPECIFICATIONS
Measuring range 0 … 250 bar
Overload 300 bar
Sensitivity 19 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 250 bar
Natural frequency 160 kHz
Acceleration sensitivity ≤ 0.0005 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7.5 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
1 %
0.25 %
20 … 400 °C and
0 … 250 bar
250 ± 100 °C and
0 … 250 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.5 bar
Thermo shock error Δp 3) ≤ ± 0.3 bar typ.
Thread diameter M5×0.5 front sealed
Cable Connection M3×0.35 negative
Weight 2.2 grams without cable
Mounting torque 1.5 Nm using SF01
