Pressure Sensors

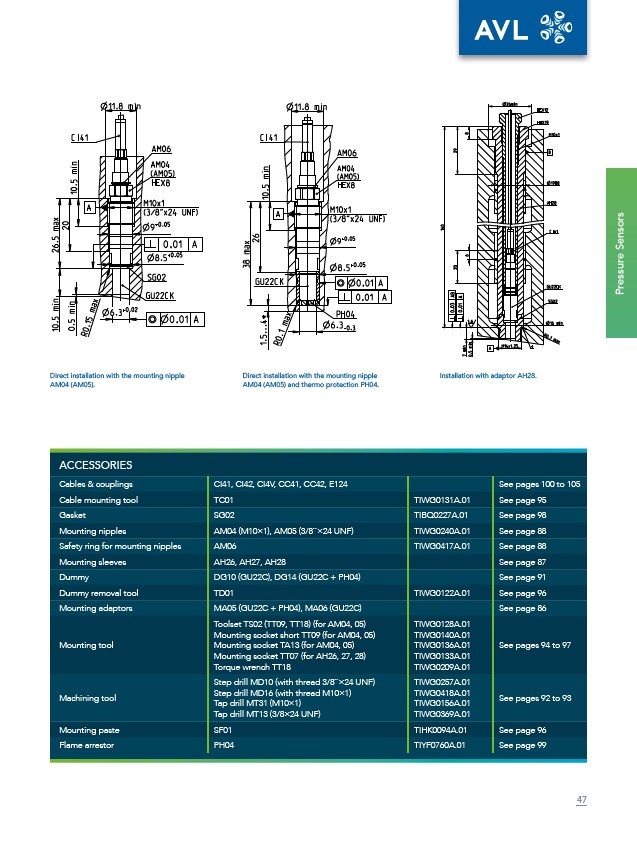

Direct installation with the mounting nipple
AM04 (AM05).
Direct installation with the mounting nipple
AM04 (AM05) and thermo protection PH04.
Installation with adaptor AH28.
ACCESSORIES
Cables & couplings CI41, CI42, CI4V, CC41, CC42, E124 See pages 100 to 105
Cable mounting tool TC01 TIWG0131A.01 See page 95
Gasket SG02 TIBQ0227A.01 See page 98
Mounting nipples AM04 (M10×1), AM05 (3/8``×24 UNF) TIWG0240A.01 See page 88
Safety ring for mounting nipples AM06 TIWG0417A.01 See page 88
Mounting sleeves AH26, AH27, AH28 See page 87
Dummy DG10 (GU22C), DG14 (GU22C + PH04) See page 91
Dummy removal tool TD01 TIWG0122A.01 See page 96
Mounting adaptors MA05 (GU22C + PH04), MA06 (GU22C) See page 86
Mounting tool
Toolset TS02 (TT09, TT18) (for AM04, 05)
Mounting socket short TT09 (for AM04, 05)
Mounting socket TA13 (for AM04, 05)
Mounting socket TT07 (for AH26, 27, 28)
Torque wrench TT18
TIWG0128A.01
TIWG0140A.01
TIWG0136A.01
TIWG0133A.01
TIWG0209A.01
See pages 94 to 97
Machining tool
Step drill MD10 (with thread 3/8``×24 UNF)
Step drill MD16 (with thread M10×1)
Tap drill MT31 (M10×1)
Tap drill MT13 (3/8×24 UNF)
TIWG0257A.01
TIWG0418A.01
TIWG0156A.01
TIWG0369A.01
See pages 92 to 93
Mounting paste SF01 TIHK0094A.01 See page 96
Flame arrestor PH04 TIYF0760A.01 See page 99
47
