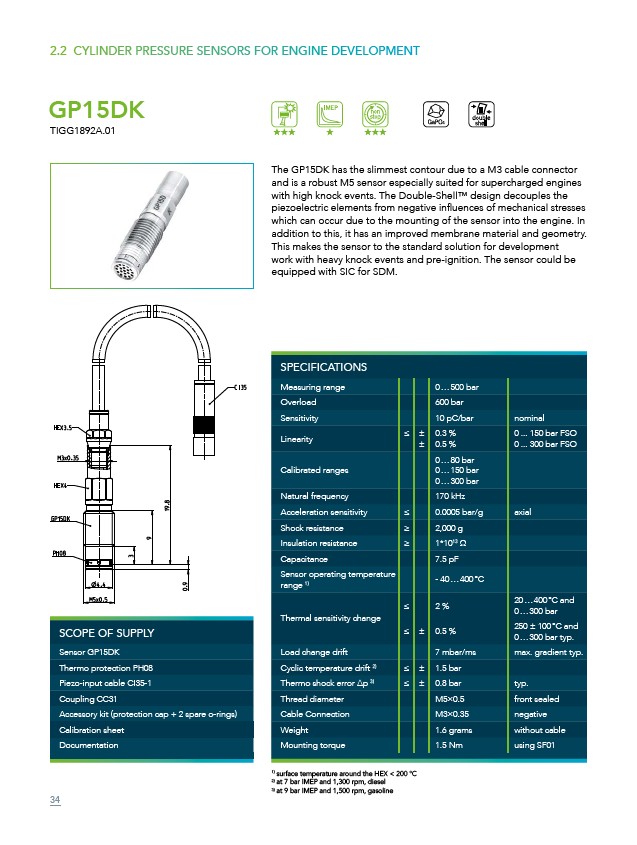

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GP15DK
TIGG1892A.01
The GP15DK has the slimmest contour due to a M3 cable connector
and is a robust M5 sensor especially suited for supercharged engines
with high knock events. The Double-Shell™ design decouples the
piezoelectric elements from negative influences of mechanical stresses
which can occur due to the mounting of the sensor into the engine. In
addition to this, it has an improved membrane material and geometry.
This makes the sensor to the standard solution for development
work with heavy knock events and pre-ignition. The sensor could be
equipped with SIC for SDM.
SPECIFICATIONS
Measuring range 0 … 500 bar
Overload 600 bar
Sensitivity 10 pC/bar nominal
Linearity
≤ ±
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
±
0.3 %
0.5 %
0 ... 150 bar FSO
0 ... 300 bar FSO
Calibrated ranges
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 170 kHz
Acceleration sensitivity ≤ 0.0005 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7.5 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
2 %
0.5 %
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Load change drift 7 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 1.5 bar
Thermo shock error Δp 3) ≤ ± 0.8 bar typ.
Thread diameter M5×0.5 front sealed
Cable Connection M3×0.35 negative
Weight 1.6 grams without cable
Mounting torque 1.5 Nm using SF01
SCOPE OF SUPPLY
Sensor GP15DK
Thermo protection PH08
Piezo-input cable CI35-1
Coupling CC31
Accessory kit (protection cap + 2 spare o-rings)
Calibration sheet
Documentation
34
