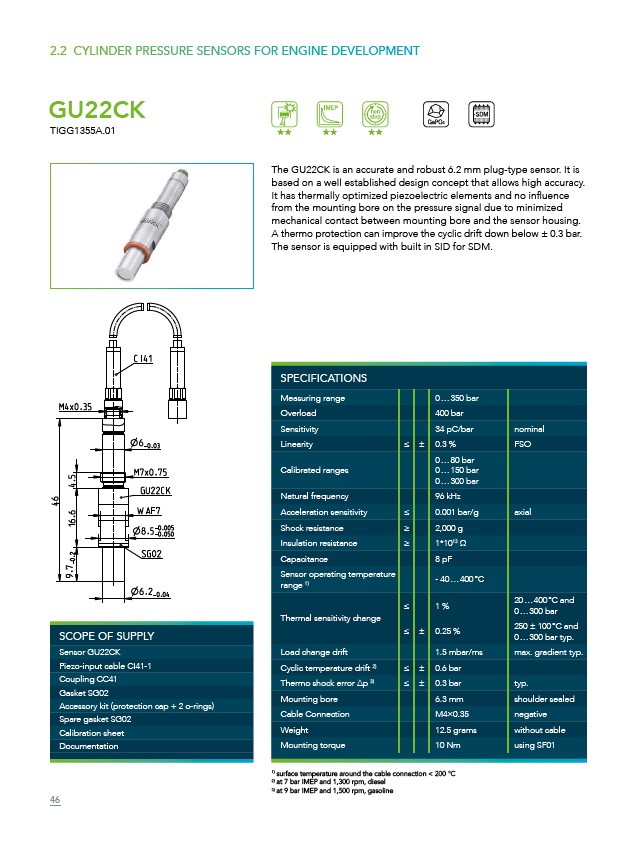

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GU22CK
TIGG1355A.01
The GU22CK is an accurate and robust 6.2 mm plug-type sensor. It is
based on a well established design concept that allows high accuracy.
It has thermally optimized piezoelectric elements and no influence
from the mounting bore on the pressure signal due to minimized
mechanical contact between mounting bore and the sensor housing.
A thermo protection can improve the cyclic drift down below ± 0.3 bar.
The sensor is equipped with built in SID for SDM.
SPECIFICATIONS
Measuring range 0 … 350 bar
Overload 400 bar
Sensitivity 34 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 96 kHz
Acceleration sensitivity ≤ 0.001 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 8 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
1 %
0.25 %
1) surface temperature around the cable connection < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.6 bar
Thermo shock error Δp 3) ≤ ± 0.3 bar typ.
Mounting bore 6.3 mm shoulder sealed
Cable Connection M4×0.35 negative
Weight 12.5 grams without cable
Mounting torque 10 Nm using SF01
SCOPE OF SUPPLY
Sensor GU22CK
Piezo-input cable CI41-1
Coupling CC41
Gasket SG02
Accessory kit (protection cap + 2 o-rings)
Spare gasket SG02
Calibration sheet
Documentation
