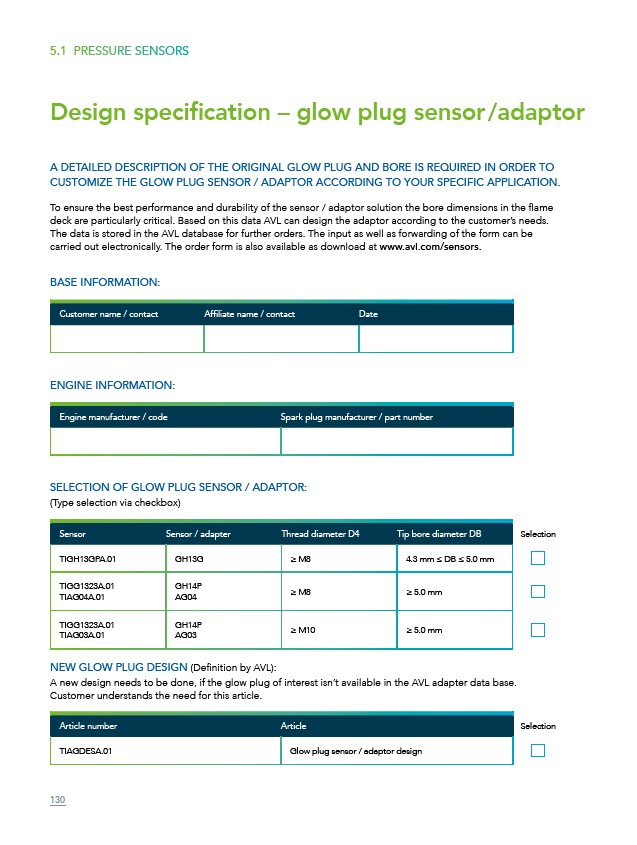

Design specification – glow plug sensor /adaptor
A DETAILED DESCRIPTION OF THE ORIGINAL GLOW PLUG AND BORE IS REQUIRED IN ORDER TO
CUSTOMIZE THE GLOW PLUG SENSOR / ADAPTOR ACCORDING TO YOUR SPECIFIC APPLICATION.
To ensure the best performance and durability of the sensor / adaptor solution the bore dimensions in the flame
deck are particularly critical. Based on this data AVL can design the adaptor according to the customer’s needs.
The data is stored in the AVL database for further orders. The input as well as forwarding of the form can be
carried out electronically. The order form is also available as download at www.avl.com/sensors.
BASE INFORMATION:
Customer name / contact Affiliate name / contact Date
ENGINE INFORMATION:
Engine manufacturer / code Spark plug manufacturer / part number
SELECTION OF GLOW PLUG SENSOR / ADAPTOR:
(Type selection via checkbox)
Sensor Sensor / adapter Thread diameter D4 Tip bore diameter DB
TIGH13GPA.01 GH13G ≥ M8 4.3 mm ≤ DB ≤ 5.0 mm
TIGG1323A.01
TIAG04A.01
GH14P
AG04
≥ M8 ≥ 5.0 mm
TIGG1323A.01
TIAG03A.01
GH14P
AG03
≥ M10 ≥ 5.0 mm
NEW GLOW PLUG DESIGN (Definition by AVL):
A new design needs to be done, if the glow plug of interest isn’t available in the AVL adapter data base.
Customer understands the need for this article.
Article number Article
TIAGDESA.01 Glow plug sensor / adaptor design
