5.1 PRESSURE SENSORS
TO CUSTOMIZE THE SPARK PLUG SENSOR TO YOUR SPECIFIC APPLICATION A DETAILED
DESCRIPTION OF THE ORIGINAL SPARK PLUG AND BORE IS REQUIRED.
A proper analysis of the original spark plug is needed in order to ensure the best performance and
durability of the sensor solution and a comparable spark initiation in the cylinder. Based on these data
AVL can design the sensor according to the customer needs. The data is stored for further orders.
The input as well as forwarding the form can be carried out electronically. The order form is also
available as download at www.avl.com/sensors.
BASE INFORMATION:
Customer name / contact Affiliate name / contact Date
ENGINE INFORMATION:
Engine manufacturer / code Spark plug manufacturer / part number
SPARK PLUG SENSOR SOLUTIONS:
(Type selection via checkbox)
Sensor Thread diameter I
ZI22 M10 × 1
ZI33 M12 × 1.25
ZI45 M14 × 1.25
Selection

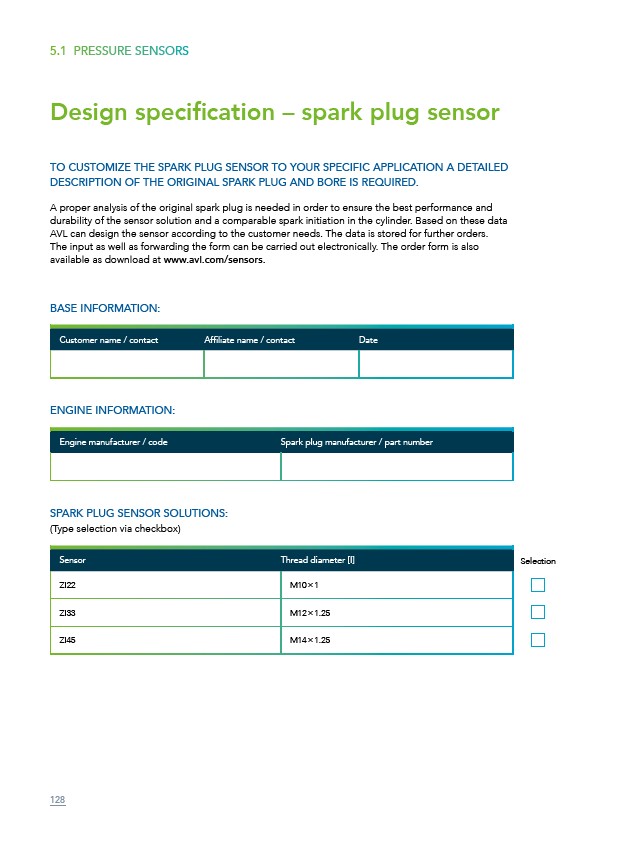

Design specification – spark plug sensor
128
