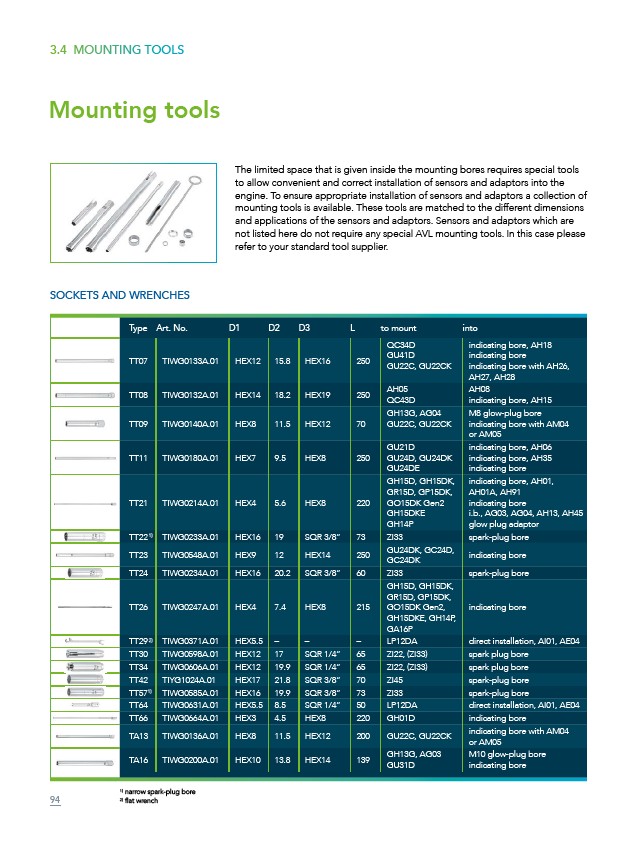

Mounting tools
1) narrow spark-plug bore
2) flat wrench
The limited space that is given inside the mounting bores requires special tools
to allow convenient and correct installation of sensors and adaptors into the
engine. To ensure appropriate installation of sensors and adaptors a collection of
mounting tools is available. These tools are matched to the different dimensions
and applications of the sensors and adaptors. Sensors and adaptors which are
not listed here do not require any special AVL mounting tools. In this case please
refer to your standard tool supplier.
SOCKETS AND WRENCHES
Type Art. No. D1 D2 D3 L to mount into
TT07 TIWG0133A.01 HEX12 15.8 HEX16 250
QC34D
GU41D
GU22C, GU22CK
indicating bore, AH18
indicating bore
indicating bore with AH26,
AH27, AH28
TT08 TIWG0132A.01 HEX14 18.2 HEX19 250
AH05
QC43D
AH08
indicating bore, AH15
TT09 TIWG0140A.01 HEX8 11.5 HEX12 70
GH13G, AG04
GU22C, GU22CK
M8 glow-plug bore
indicating bore with AM04
or AM05
TT11 TIWG0180A.01 HEX7 9.5 HEX8 250
GU21D
GU24D, GU24DK
GU24DE
indicating bore, AH06
indicating bore, AH35
indicating bore
TT21 TIWG0214A.01 HEX4 5.6 HEX8 220
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2
GH15DKE
GH14P
indicating bore, AH01,
AH01A, AH91
indicating bore
i.b., AG03, AG04, AH13, AH45
glow plug adaptor
TT22 1) TIWG0233A.01 HEX16 19 SQR 3/8“ 73 ZI33 spark-plug bore
TT23 TIWG0548A.01 HEX9 12 HEX14 250
GU24DK, GC24D,
GC24DK
indicating bore
TT24 TIWG0234A.01 HEX16 20.2 SQR 3/8“ 60 ZI33 spark-plug bore
TT26 TIWG0247A.01 HEX4 7.4 HEX8 215
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2,
GH15DKE, GH14P,
GA16P
indicating bore
TT29 2) TIWG0371A.01 HEX5.5 – – – LP12DA direct installation, AI01, AE04
TT30 TIWG0598A.01 HEX12 17 SQR 1/4“ 65 ZI22, (ZI33) spark plug bore
TT34 TIWG0606A.01 HEX12 19.9 SQR 1/4“ 65 ZI22, (ZI33) spark plug bore
TT42 TIYG1024A.01 HEX17 21.8 SQR 3/8“ 70 ZI45 spark-plug bore
TT571) TIWG0585A.01 HEX16 19.9 SQR 3/8“ 73 ZI33 spark-plug bore
TT64 TIWG0631A.01 HEX5.5 8.5 SQR 1/4“ 50 LP12DA direct installation, AI01, AE04
TT66 TIWG0664A.01 HEX3 4.5 HEX8 220 GH01D indicating bore
TA13 TIWG0136A.01 HEX8 11.5 HEX12 200 GU22C, GU22CK
indicating bore with AM04
or AM05
TA16 TIWG0200A.01 HEX10 13.8 HEX14 139
GH13G, AG03
GU31D
M10 glow-plug bore
indicating bore
3.4 MOUNTING TOOLS
94
