Accessories for Pressure Sensors

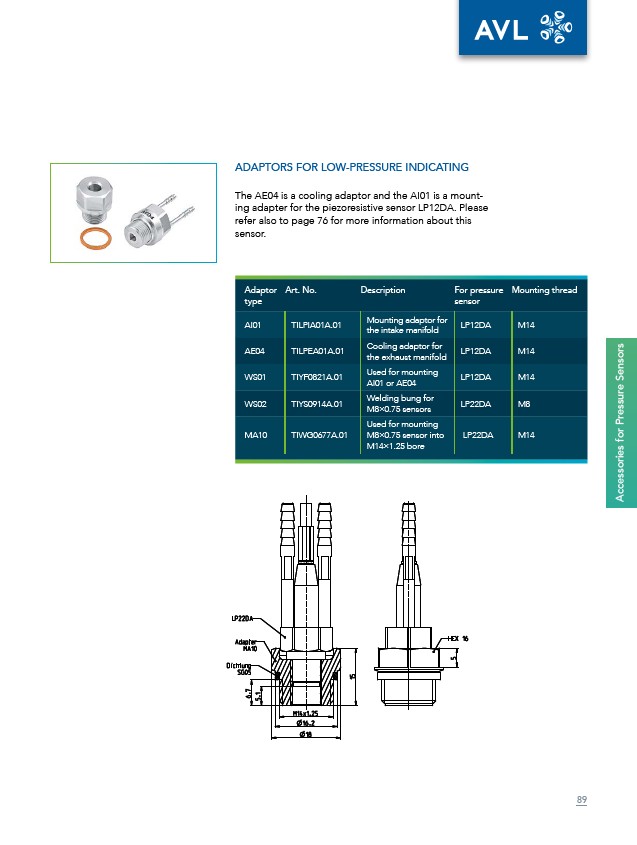

ADAPTORS FOR LOW-PRESSURE INDICATING
The AE04 is a cooling adaptor and the AI01 is a mounting
adapter for the piezoresistive sensor LP12DA. Please
refer also to page 76 for more information about this
sensor.
Adaptor
type
Art. No. Description For pressure
sensor
Mounting thread
AI01 TILPIA01A.01
Mounting adaptor for
the intake manifold
LP12DA M14
AE04 TILPEA01A.01
Cooling adaptor for
the exhaust manifold
LP12DA M14
WS01 TIYF0821A.01
Used for mounting
AI01 or AE04
LP12DA M14
WS02 TIYS0914A.01
Welding bung for
M8×0.75 sensors
LP22DA M8
MA10 TIWG0677A.01
Used for mounting
M8×0.75 sensor into
M14×1.25 bore
LP22DA M14
89
