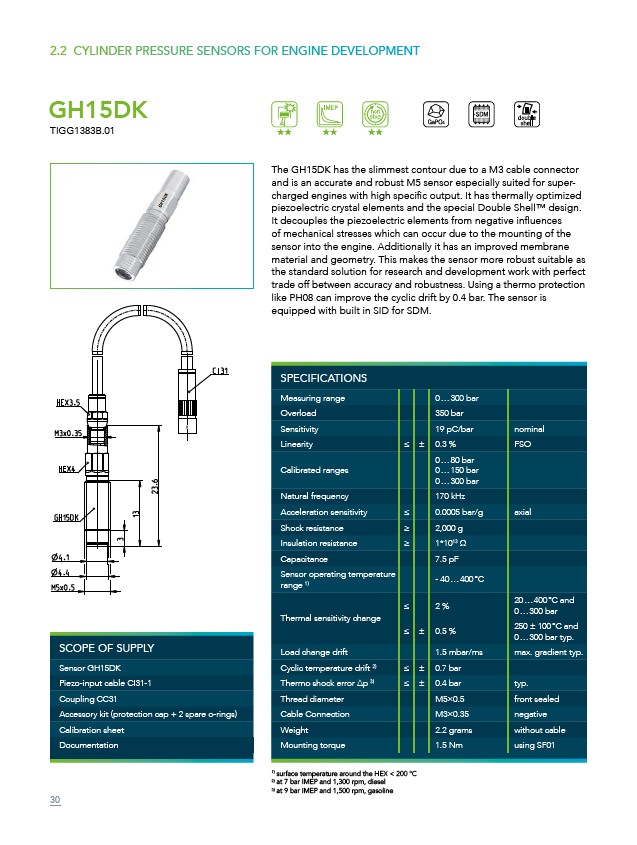

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GH15DK
TIGG1383B.01
The GH15DK has the slimmest contour due to a M3 cable connector
and is an accurate and robust M5 sensor especially suited for supercharged
engines with high specific output. It has thermally optimized
piezoelectric crystal elements and the special Double Shell™ design.
It decouples the piezoelectric elements from negative influences
of mechanical stresses which can occur due to the mounting of the
sensor into the engine. Additionally it has an improved membrane
material and geometry. This makes the sensor more robust suitable as
the standard solution for research and development work with perfect
trade off between accuracy and robustness. Using a thermo protection
like PH08 can improve the cyclic drift by 0.4 bar. The sensor is
equipped with built in SID for SDM.
SPECIFICATIONS
Measuring range 0 … 300 bar
Overload 350 bar
Sensitivity 19 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 170 kHz
Acceleration sensitivity ≤ 0.0005 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7.5 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
2 %
0.5 %
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.7 bar
Thermo shock error Δp 3) ≤ ± 0.4 bar typ.
Thread diameter M5×0.5 front sealed
Cable Connection M3×0.35 negative
Weight 2.2 grams without cable
Mounting torque 1.5 Nm using SF01
SCOPE OF SUPPLY
Sensor GH15DK
Piezo-input cable CI31-1
Coupling CC31
Accessory kit (protection cap + 2 spare o-rings)
Calibration sheet
Documentation
