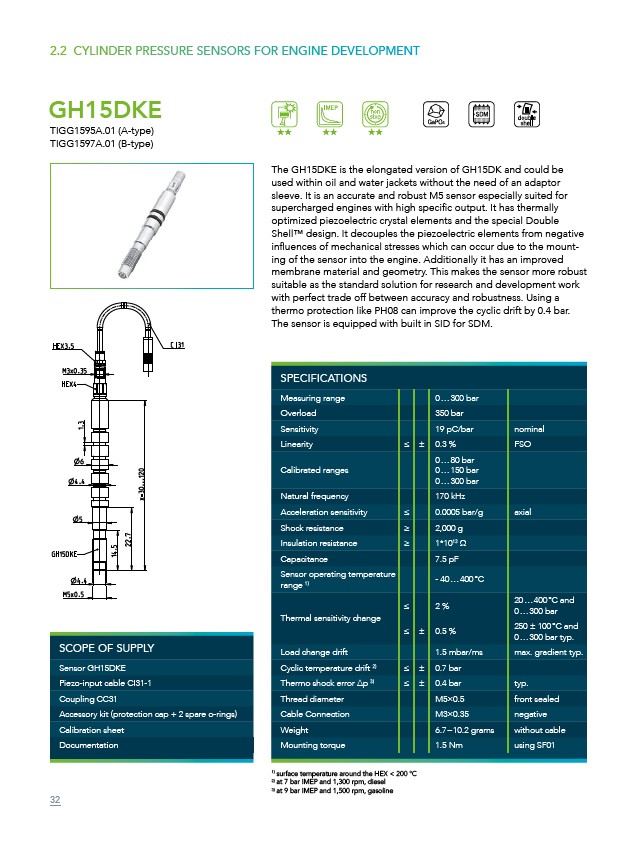

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GH15DKE
TIGG1595A.01 (A-type)
TIGG1597A.01 (B-type)
The GH15DKE is the elongated version of GH15DK and could be
used within oil and water jackets without the need of an adaptor
sleeve. It is an accurate and robust M5 sensor especially suited for
supercharged engines with high specific output. It has thermally
optimized piezoelectric crystal elements and the special Double
Shell™ design. It decouples the piezoelectric elements from negative
influences of mechanical stresses which can occur due to the mounting
of the sensor into the engine. Additionally it has an improved
membrane material and geometry. This makes the sensor more robust
suitable as the standard solution for research and development work
with perfect trade off between accuracy and robustness. Using a
thermo protection like PH08 can improve the cyclic drift by 0.4 bar.
The sensor is equipped with built in SID for SDM.
SPECIFICATIONS
Measuring range 0 … 300 bar
Overload 350 bar
Sensitivity 19 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 170 kHz
Acceleration sensitivity ≤ 0.0005 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7.5 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
2 %
0.5 %
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.7 bar
Thermo shock error Δp 3) ≤ ± 0.4 bar typ.
Thread diameter M5×0.5 front sealed
Cable Connection M3×0.35 negative
Weight 6.7 – 10.2 grams without cable
Mounting torque 1.5 Nm using SF01
SCOPE OF SUPPLY
Sensor GH15DKE
Piezo-input cable CI31-1
Coupling CC31
Accessory kit (protection cap + 2 spare o-rings)
Calibration sheet
Documentation
32
