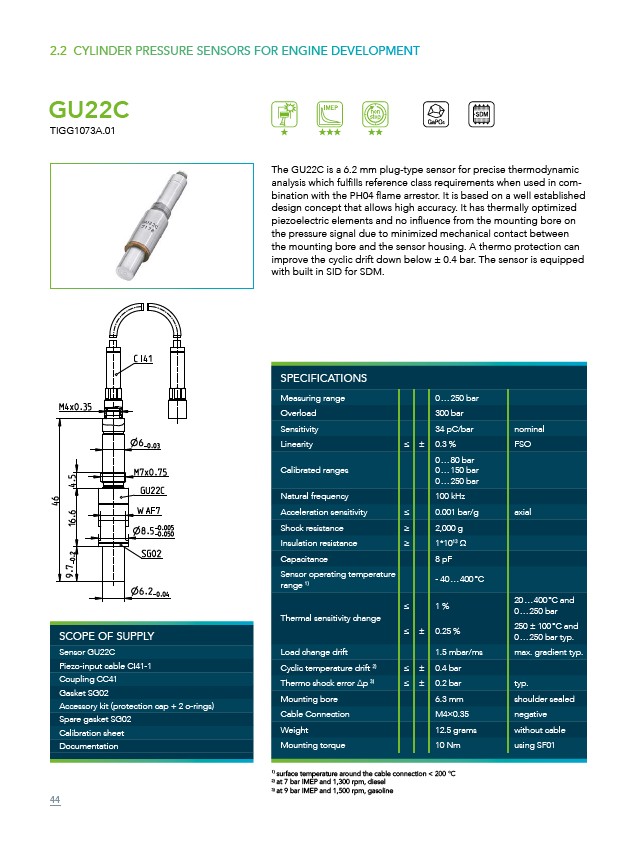

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GU22C
TIGG1073A.01
The GU22C is a 6.2 mm plug-type sensor for precise thermodynamic
analysis which fulfills reference class requirements when used in combination
with the PH04 flame arrestor. It is based on a well established
design concept that allows high accuracy. It has thermally optimized
piezoelectric elements and no influence from the mounting bore on
the pressure signal due to minimized mechanical contact between
the mounting bore and the sensor housing. A thermo protection can
improve the cyclic drift down below ± 0.4 bar. The sensor is equipped
with built in SID for SDM.
SPECIFICATIONS
Measuring range 0 … 250 bar
Overload 300 bar
Sensitivity 34 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
0 … 80 bar
0 … 150 bar
0 … 250 bar
Natural frequency 100 kHz
Acceleration sensitivity ≤ 0.001 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 8 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
1 %
0.25 %
1) surface temperature around the cable connection < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
20 … 400 °C and
0 … 250 bar
250 ± 100 °C and
0 … 250 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.4 bar
Thermo shock error Δp 3) ≤ ± 0.2 bar typ.
Mounting bore 6.3 mm shoulder sealed
Cable Connection M4×0.35 negative
Weight 12.5 grams without cable
Mounting torque 10 Nm using SF01
SCOPE OF SUPPLY
Sensor GU22C
Piezo-input cable CI41-1
Coupling CC41
Gasket SG02
Accessory kit (protection cap + 2 o-rings)
Spare gasket SG02
Calibration sheet
Documentation
