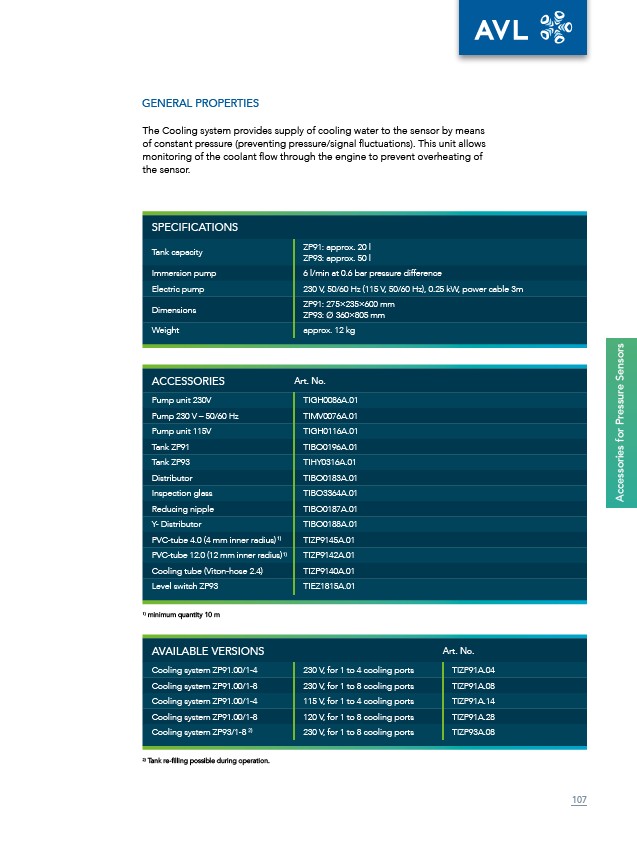

Accessories for Pressure Sensors
GENERAL PROPERTIES
The Cooling system provides supply of cooling water to the sensor by means
of constant pressure (preventing pressure/signal fluctuations). This unit allows
monitoring of the coolant flow through the engine to prevent overheating of
the sensor.
SPECIFICATIONS
Tank capacity
ACCESSORIES Art. No.
Pump unit 230V TIGH0086A.01
Pump 230 V – 50/60 Hz TIMV0076A.01
Pump unit 115V TIGH0116A.01
Tank ZP91 TIBO0196A.01
Tank ZP93 TIHY0316A.01
Distributor TIBO0183A.01
Inspection glass TIBO3364A.01
Reducing nipple TIBO0187A.01
Y- Distributor TIBO0188A.01
PVC-tube 4.0 (4 mm inner radius) 1) TIZP9145A.01
PVC-tube 12.0 (12 mm inner radius) 1) TIZP9142A.01
Cooling tube (Viton-hose 2.4) TIZP9140A.01
Level switch ZP93 TIEZ1815A.01
1) minimum quantity 10 m
AVAILABLE VERSIONS Art. No.
Cooling system ZP91.00/1-4 230 V, for 1 to 4 cooling ports TIZP91A.04
Cooling system ZP91.00/1-8 230 V, for 1 to 8 cooling ports TIZP91A.08
Cooling system ZP91.00/1-4 115 V, for 1 to 4 cooling ports TIZP91A.14
Cooling system ZP91.00/1-8 120 V, for 1 to 8 cooling ports TIZP91A.28
Cooling system ZP93/1-8 2) 230 V, for 1 to 8 cooling ports TIZP93A.08
2) Tank re-filling possible during operation.
ZP91: approx. 20 l
ZP93: approx. 50 l
Immersion pump 6 l/min at 0.6 bar pressure difference
Electric pump 230 V, 50/60 Hz (115 V, 50/60 Hz), 0.25 kW, power cable 3m
Dimensions
ZP91: 275×235×600 mm
ZP93: Ø 360×805 mm
Weight approx. 12 kg
