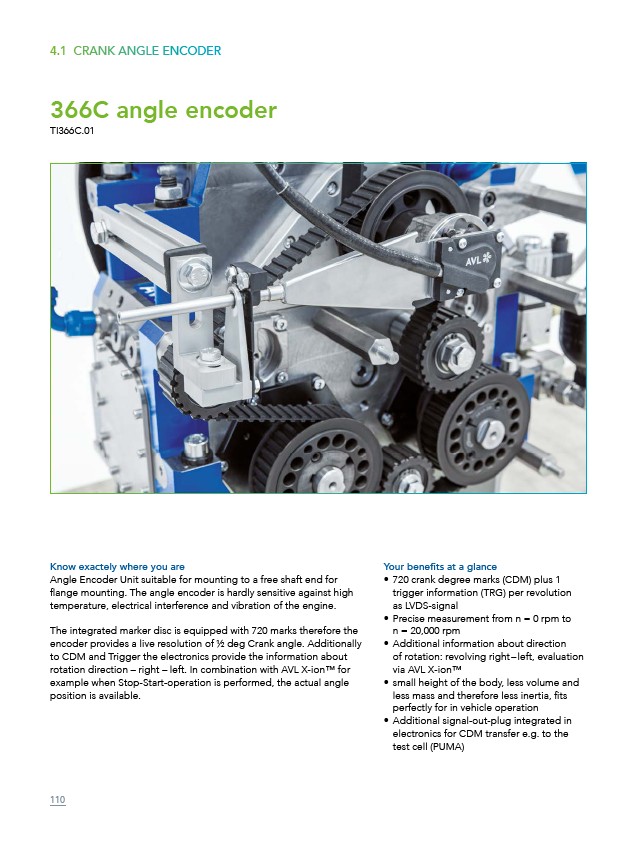

4.1 CRANK ANGLE ENCODER
366C angle encoder
TI366C.01
Know exactely where you are
Angle Encoder Unit suitable for mounting to a free shaft end for
flange mounting. The angle encoder is hardly sensitive against high
temperature, electrical interference and vibration of the engine.
The integrated marker disc is equipped with 720 marks therefore the
encoder provides a live resolution of ½ deg Crank angle. Additionally
to CDM and Trigger the electronics provide the information about
rotation direction – right – left. In combination with AVL X-ion™ for
example when Stop-Start-operation is performed, the actual angle
position is available.
Your benefits at a glance
• 720 crank degree marks (CDM) plus 1
trigger information (TRG) per revolution
as LVDS-signal
• Precise measurement from n = 0 rpm to
n = 20,000 rpm
• Additional information about direction
of rotation: revolving right – left, evaluation
via AVL X‑ion™
• small height of the body, less volume and
less mass and therefore less inertia, fits
perfectly for in vehicle operation
• Additional signal-out-plug integrated in
electronics for CDM transfer e.g. to the
test cell (PUMA)
