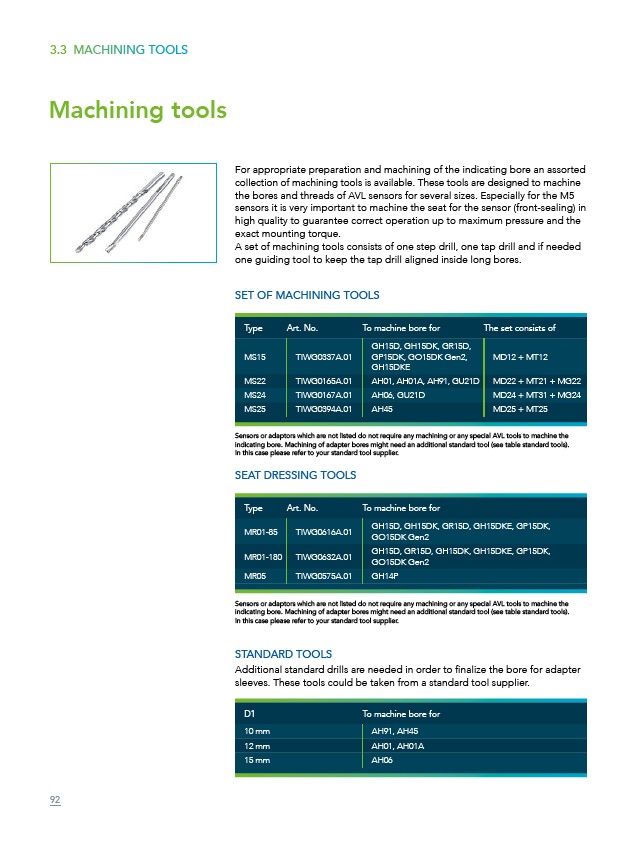

Machining tools
For appropriate preparation and machining of the indicating bore an assorted
collection of machining tools is available. These tools are designed to machine
the bores and threads of AVL sensors for several sizes. Especially for the M5
sensors it is very important to machine the seat for the sensor (front-sealing) in
high quality to guarantee correct operation up to maximum pressure and the
exact mounting torque.
A set of machining tools consists of one step drill, one tap drill and if needed
one guiding tool to keep the tap drill aligned inside long bores.
SET OF MACHINING TOOLS
Type Art. No. To machine bore for The set consists of
MS15 TIWG0337A.01
GH15D, GH15DK, GR15D,
GP15DK, GO15DK Gen2,
GH15DKE
MD12 + MT12
MS22 TIWG0165A.01 AH01, AH01A, AH91, GU21D MD22 + MT21 + MG22
MS24 TIWG0167A.01 AH06, GU21D MD24 + MT31 + MG24
MS25 TIWG0394A.01 AH45 MD25 + MT25
Sensors or adaptors which are not listed do not require any machining or any special AVL tools to machine the
indicating bore. Machining of adapter bores might need an additional standard tool (see table standard tools).
In this case please refer to your standard tool supplier.
SEAT DRESSING TOOLS
Type Art. No. To machine bore for
MR01-85 TIWG0616A.01
GH15D, GH15DK, GR15D, GH15DKE, GP15DK,
GO15DK Gen2
MR01-180 TIWG0632A.01
GH15D, GR15D, GH15DK, GH15DKE, GP15DK,
GO15DK Gen2
MR05 TIWG0575A.01 GH14P
Sensors or adaptors which are not listed do not require any machining or any special AVL tools to machine the
indicating bore. Machining of adapter bores might need an additional standard tool (see table standard tools).
In this case please refer to your standard tool supplier.
STANDARD TOOLS
Additional standard drills are needed in order to finalize the bore for adapter
sleeves. These tools could be taken from a standard tool supplier.
D1 To machine bore for
10 mm AH91, AH45
12 mm AH01, AH01A
15 mm AH06
