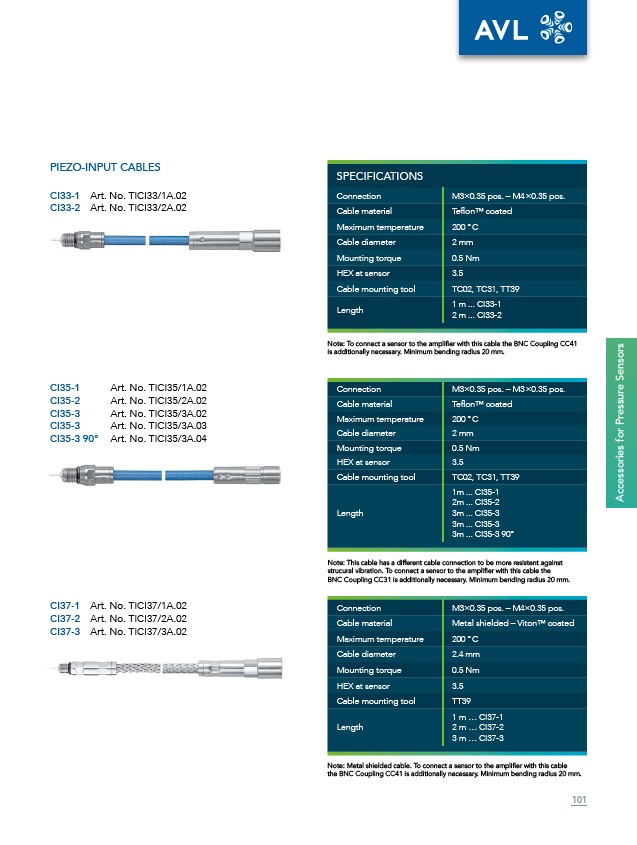

Accessories for Pressure Sensors
PIEZO-INPUT CABLES
CI33-1 Art. No. TICI33/1A.02
CI33-2 Art. No. TICI33/2A.02
SPECIFICATIONS
Connection M3×0.35 pos. – M4 ×0.35 pos.
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TC02, TC31, TT39
Length
1 m ... CI33-1
2 m ... CI33-2
Note: To connect a sensor to the amplifier with this cable the BNC Coupling CC41
is additionally necessary. Minimum bending radius 20 mm.
CI35-1 Art. No. TICI35/1A.02
CI35-2 Art. No. TICI35/2A.02
CI35-3 Art. No. TICI35/3A.02
CI35-3 Art. No. TICI35/3A.03
CI35-3 90° Art. No. TICI35/3A.04
Connection M3×0.35 pos. – M3 ×0.35 pos.
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TC02, TC31, TT39
Length
1m ... CI35-1
2m ... CI35-2
3m ... CI35-3
3m ... CI35-3
3m ... CI35-3 90°
Note: This cable has a different cable connection to be more resistent against
strucural vibration. To connect a sensor to the amplifier with this cable the
BNC Coupling CC31 is additionally necessary. Minimum bending radius 20 mm.
Note: Metal shielded cable. To connect a sensor to the amplifier with this cable
the BNC Coupling CC41 is additionally necessary. Minimum bending radius 20 mm.
CI37-1 Art. No. TICI37/1A.02
CI37-2 Art. No. TICI37/2A.02
CI37-3 Art. No. TICI37/3A.02
Connection M3×0.35 pos. – M4×0.35 pos.
Cable material Metal shielded – Viton™ coated
Maximum temperature 200 ° C
Cable diameter 2.4 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TT39
Length
1 m … CI37-1
2 m … CI37-2
3 m … CI37-3
101
