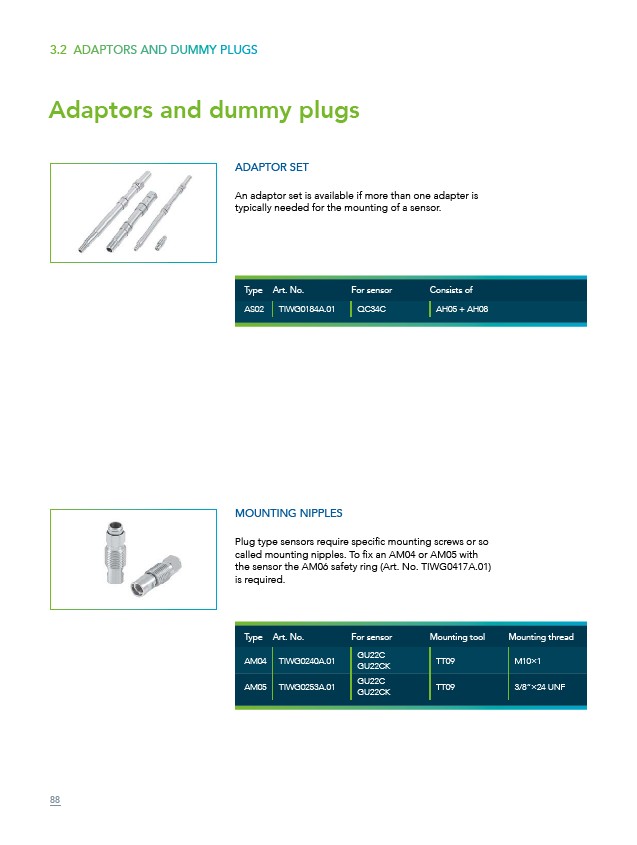

Adaptors and dummy plugs
ADAPTOR SET
An adaptor set is available if more than one adapter is
typically needed for the mounting of a sensor.
Type Art. No. For sensor Consists of
AS02 TIWG0184A.01 QC34C AH05 + AH08
MOUNTING NIPPLES
Plug type sensors require specific mounting screws or so
called mounting nipples. To fix an AM04 or AM05 with
the sensor the AM06 safety ring (Art. No. TIWG0417A.01)
is required.
Type Art. No. For sensor Mounting tool Mounting thread
AM04 TIWG0240A.01
GU22C
GU22CK
TT09 M10×1
AM05 TIWG0253A.01
GU22C
GU22CK
TT09 3/8“×24 UNF
3.2 ADAPTORS AND DUMMY PLUGS
88
