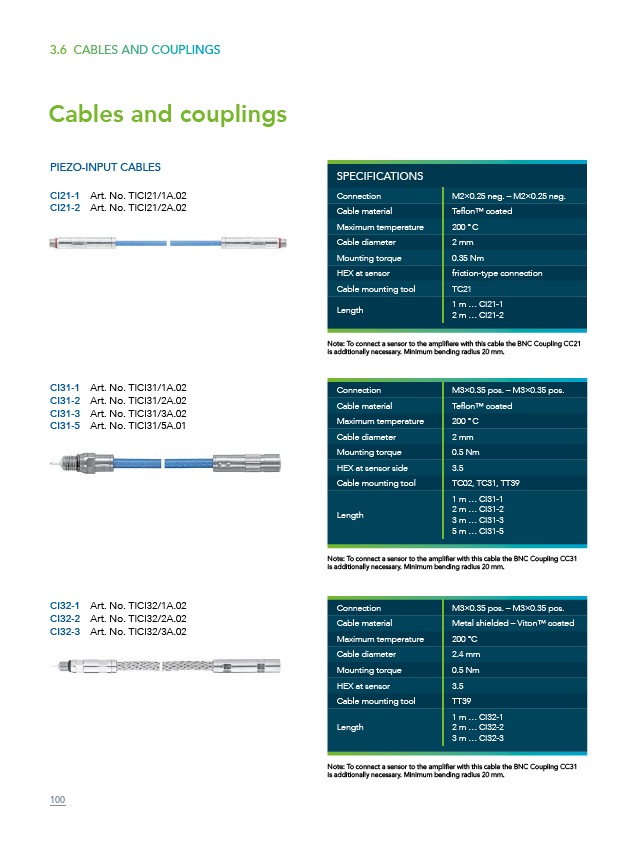

PIEZO-INPUT CABLES
CI31-1 Art. No. TICI31/1A.02
CI31-2 Art. No. TICI31/2A.02
CI31-3 Art. No. TICI31/3A.02
CI31-5 Art. No. TICI31/5A.01
SPECIFICATIONS
Connection M2×0.25 neg. – M2×0.25 neg.
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.35 Nm
HEX at sensor friction-type connection
Cable mounting tool TC21
Length
1 m … CI21-1
2 m … CI21-2
Connection M3×0.35 pos. – M3×0.35 pos.
Cable material Teflon™ coated
Maximum temperature 200 ° C
Cable diameter 2 mm
Mounting torque 0.5 Nm
HEX at sensor side 3.5
Cable mounting tool TC02, TC31, TT39
Length
1 m … CI31-1
2 m … CI31-2
3 m … CI31-3
5 m … CI31-5
Note: To connect a sensor to the amplifier with this cable the BNC Coupling CC31
is additionally necessary. Minimum bending radius 20 mm.
Cables and couplings
CI32-1 Art. No. TICI32/1A.02
CI32-2 Art. No. TICI32/2A.02
CI32-3 Art. No. TICI32/3A.02
Connection M3×0.35 pos. – M3×0.35 pos.
Cable material Metal shielded – Viton™ coated
Maximum temperature 200 °C
Cable diameter 2.4 mm
Mounting torque 0.5 Nm
HEX at sensor 3.5
Cable mounting tool TT39
Length
1 m … CI32-1
2 m … CI32-2
3 m … CI32-3
Note: To connect a sensor to the amplifier with this cable the BNC Coupling CC31
is additionally necessary. Minimum bending radius 20 mm.
CI21-1 Art. No. TICI21/1A.02
CI21-2 Art. No. TICI21/2A.02
Note: To connect a sensor to the amplifiere with this cable the BNC Coupling CC21
is additionally necessary. Minimum bending radius 20 mm.
