Sensor mounted in cylinder head
Technical information
The TDC-Sensor is installed in the
cylinder head via already existing
bores using suitable adapters. Due
to the high variety of injectors or
spark plugs and engine types in use,
the necessary adapter will usually
be manufactured by the user. For
applying the standard probe Length
= 260 mm the „TDC-Sensor-Set 428“
consists of three suitable adaptors
(M10, M12, M14).
SENSOR
Operating Temperature Range
Sensor Probe: 0 °C to 250 °C (Cycle average)
Sensor Electronic: 0 °C to 80 °C
Speed Range 600 rpm to 2000 rpm, non-fired
Power Supply AVL angle encoder
Analogue Output Signal ±10 V
Weight TDC-Sensor 428: 780g
Article number to order TI0428SETA.01
Minimum Distance
1.5 mm at
Gas-ex.-TDC
Electronics
Probe
Clamping Set
Adaptor

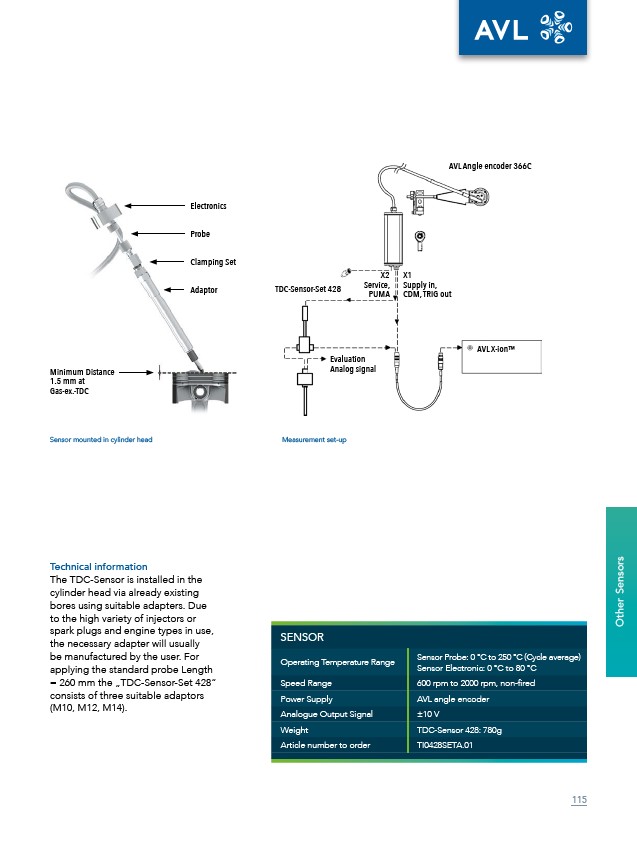

Measurement set-up
AVL Angle encoder 366C
Evaluation
Analog signal
AVL X-ion™
TDC-Sensor-Set 428
X2
Service,
PUMA
X1
Supply in,
CDM, TRIG out
