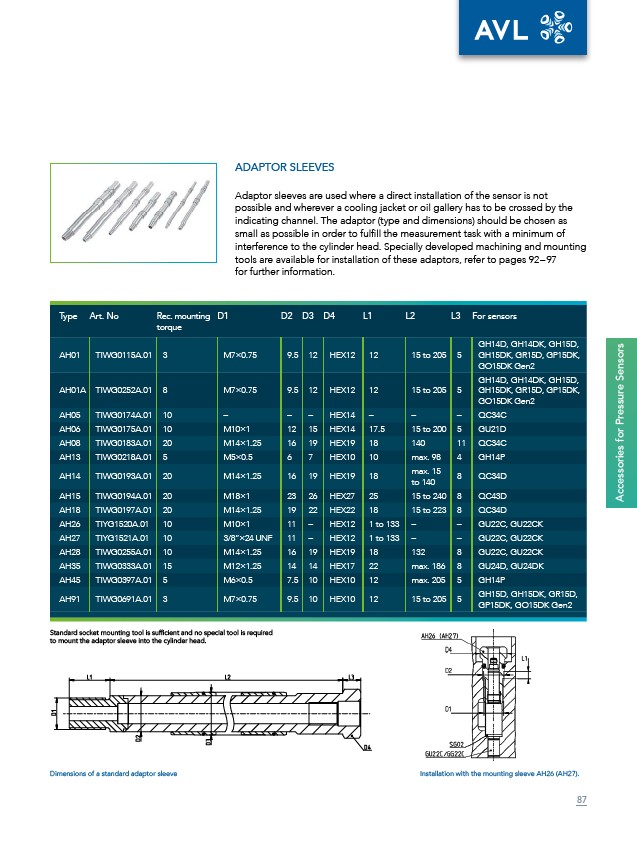

Accessories for Pressure Sensors
ADAPTOR SLEEVES
Type Art. No Rec. mounting
torque
Adaptor sleeves are used where a direct installation of the sensor is not
possible and wherever a cooling jacket or oil gallery has to be crossed by the
indicating channel. The adaptor (type and dimensions) should be chosen as
small as possible in order to fulfill the measurement task with a minimum of
interference to the cylinder head. Specially developed machining and mounting
tools are available for installation of these adaptors, refer to pages 92 – 97
for further information.
D1 D2 D3 D4 L1 L2 L3 For sensors
AH01 TIWG0115A.01 3 M7×0.75 9.5 12 HEX12 12 15 to 205 5
GH14D, GH14DK, GH15D,
GH15DK, GR15D, GP15DK,
GO15DK Gen2
AH01A TIWG0252A.01 8 M7×0.75 9.5 12 HEX12 12 15 to 205 5
GH14D, GH14DK, GH15D,
GH15DK, GR15D, GP15DK,
GO15DK Gen2
AH05 TIWG0174A.01 10 – – – HEX14 – – – QC34C
AH06 TIWG0175A.01 10 M10×1 12 15 HEX14 17.5 15 to 200 5 GU21D
AH08 TIWG0183A.01 20 M14×1.25 16 19 HEX19 18 140 11 QC34C
AH13 TIWG0218A.01 5 M5×0.5 6 7 HEX10 10 max. 98 4 GH14P
AH14 TIWG0193A.01 20 M14×1.25 16 19 HEX19 18
max. 15
to 140
8 QC34D
AH15 TIWG0194A.01 20 M18×1 23 26 HEX27 25 15 to 240 8 QC43D
AH18 TIWG0197A.01 20 M14×1.25 19 22 HEX22 18 15 to 223 8 QC34D
AH26 TIYG1520A.01 10 M10×1 11 – HEX12 1 to 133 – – GU22C, GU22CK
AH27 TIYG1521A.01 10 3/8”×24 UNF 11 – HEX12 1 to 133 – – GU22C, GU22CK
AH28 TIWG0255A.01 10 M14×1.25 16 19 HEX19 18 132 8 GU22C, GU22CK
AH35 TIWG0333A.01 15 M12×1.25 14 14 HEX17 22 max. 186 8 GU24D, GU24DK
AH45 TIWG0397A.01 5 M6×0.5 7.5 10 HEX10 12 max. 205 5 GH14P
AH91 TIWG0691A.01 3 M7×0.75 9.5 10 HEX10 12 15 to 205 5
GH15D, GH15DK, GR15D,
GP15DK, GO15DK Gen2
Standard socket mounting tool is sufficient and no special tool is required
to mount the adaptor sleeve into the cylinder head.
Dimensions of a standard adaptor sleeve Installation with the mounting sleeve AH26 (AH27).
87
