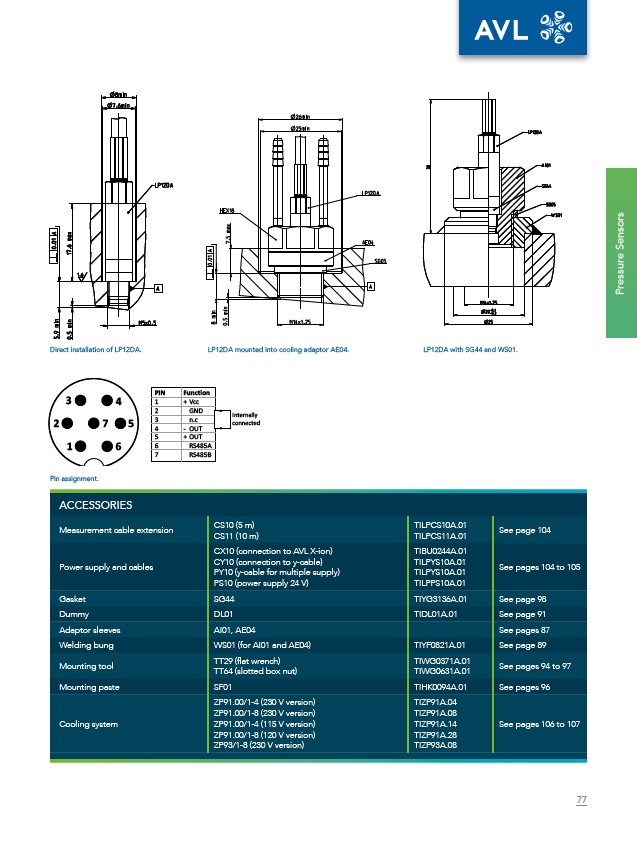

Direct installation of LP12DA. LP12DA mounted into cooling adaptor AE04. LP12DA with SG44 and WS01.
3
ACCESSORIES
Measurement cable extension
CS10 (5 m)
CS11 (10 m)
TILPCS10A.01
TILPCS11A.01
See page 104
Power supply and cables
CX10 (connection to AVL X-ion)
CY10 (connection to y-cable)
PY10 (y-cable for multiple supply)
PS10 (power supply 24 V)
TIBU0244A.01
TILPYS10A.01
TILPYS10A.01
TILPPS10A.01
See pages 104 to 105
Gasket SG44 TIYG3136A.01 See page 98
Dummy DL01 TIDL01A.01 See page 91
Adaptor sleeves AI01, AE04 See pages 87
Welding bung WS01 (for AI01 and AE04) TIYF0821A.01 See page 89
Mounting tool
TT29 (flat wrench)
TT64 (slotted box nut)
TIWG0371A.01
TIWG0631A.01
See pages 94 to 97
Mounting paste SF01 TIHK0094A.01 See pages 96
Cooling system
ZP91.00/1-4 (230 V version)
ZP91.00/1-8 (230 V version)
ZP91.00/1-4 (115 V version)
ZP91.00/1-8 (120 V version)
ZP93/1-8 (230 V version)
TIZP91A.04
TIZP91A.08
TIZP91A.14
TIZP91A.28
TIZP93A.08
See pages 106 to 107
Pin assignment.
4
2
1
7
6
5
PIN Function
1 + Vcc
2 GND
3 n.c
4 - OUT
5 + OUT
6 RS485A
7 RS485B
Internally
connected
4
2
1
7
6
5
PIN Function
1 + Vcc
2 GND
3 n.c
4 - OUT
5 + OUT
6 RS485A
7 RS485B
Internally
connected
