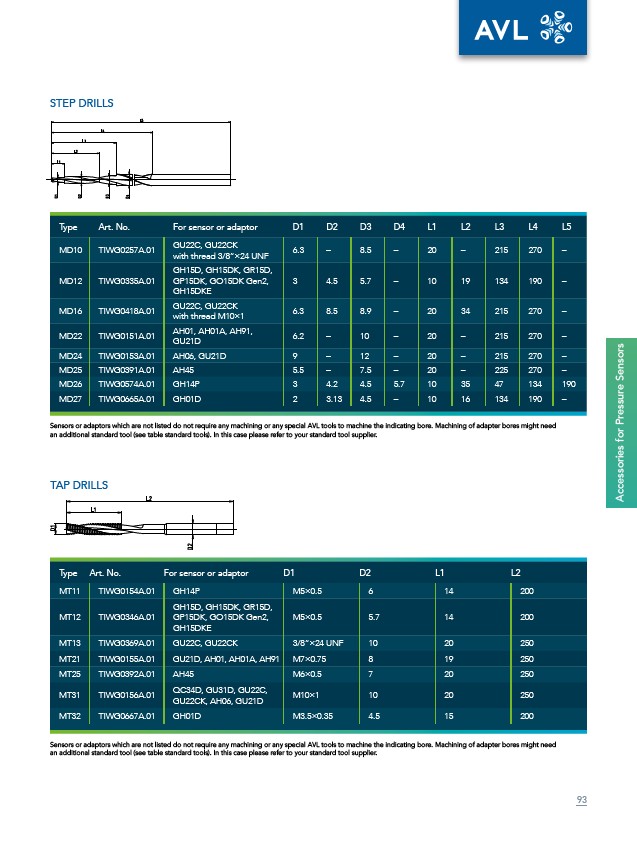

Accessories for Pressure Sensors
STEP DRILLS
Type Art. No. For sensor or adaptor D1 D2 D3 D4 L1 L2 L3 L4 L5
MD10 TIWG0257A.01
GU22C, GU22CK
with thread 3/8“×24 UNF
6.3 – 8.5 – 20 – 215 270 –
MD12 TIWG0335A.01
GH15D, GH15DK, GR15D,
GP15DK, GO15DK Gen2,
GH15DKE
3 4.5 5.7 – 10 19 134 190 –
MD16 TIWG0418A.01
GU22C, GU22CK
with thread M10×1
6.3 8.5 8.9 – 20 34 215 270 –
MD22 TIWG0151A.01
AH01, AH01A, AH91,
GU21D
6.2 – 10 – 20 – 215 270 –
MD24 TIWG0153A.01 AH06, GU21D 9 – 12 – 20 – 215 270 –
MD25 TIWG0391A.01 AH45 5.5 – 7.5 – 20 – 225 270 –
MD26 TIWG0574A.01 GH14P 3 4.2 4.5 5.7 10 35 47 134 190
MD27 TIWG0665A.01 GH01D 2 3.13 4.5 – 10 16 134 190 –
Sensors or adaptors which are not listed do not require any machining or any special AVL tools to machine the indicating bore. Machining of adapter bores might need
an additional standard tool (see table standard tools). In this case please refer to your standard tool supplier.
TAP DRILLS
Type Art. No. For sensor or adaptor D1 D2 L1 L2
MT11 TIWG0154A.01 GH14P M5×0.5 6 14 200
MT12 TIWG0346A.01
GH15D, GH15DK, GR15D,
GP15DK, GO15DK Gen2,
GH15DKE
M5×0.5 5.7 14 200
MT13 TIWG0369A.01 GU22C, GU22CK 3/8“×24 UNF 10 20 250
MT21 TIWG0155A.01 GU21D, AH01, AH01A, AH91 M7×0.75 8 19 250
MT25 TIWG0392A.01 AH45 M6×0.5 7 20 250
MT31 TIWG0156A.01
QC34D, GU31D, GU22C,
GU22CK, AH06, GU21D
M10×1 10 20 250
MT32 TIWG0667A.01 GH01D M3.5×0.35 4.5 15 200
Sensors or adaptors which are not listed do not require any machining or any special AVL tools to machine the indicating bore. Machining of adapter bores might need
an additional standard tool (see table standard tools). In this case please refer to your standard tool supplier.
93
