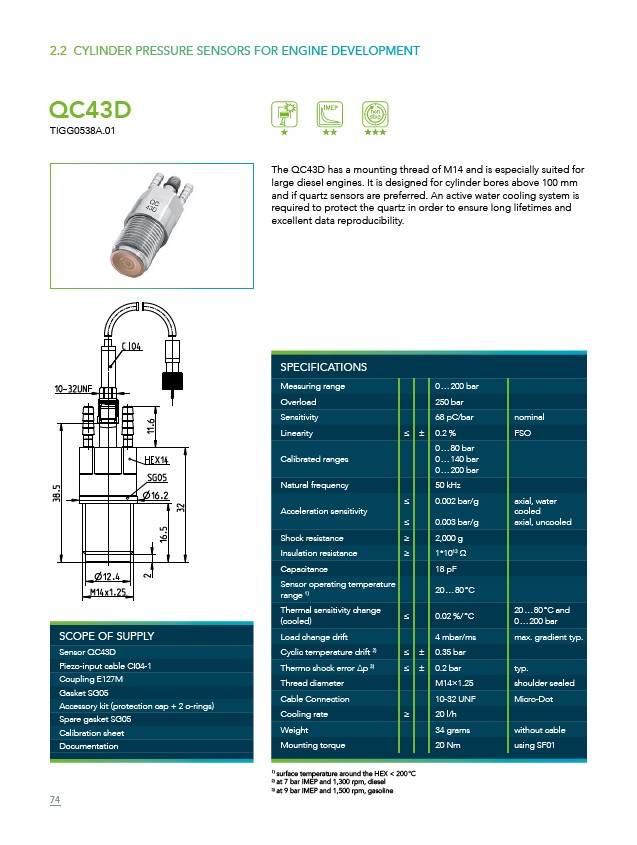

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
QC43D
TIGG0538A.01
The QC43D has a mounting thread of M14 and is especially suited for
large diesel engines. It is designed for cylinder bores above 100 mm
and if quartz sensors are preferred. An active water cooling system is
required to protect the quartz in order to ensure long lifetimes and
excellent data reproducibility.
SPECIFICATIONS
Measuring range 0 … 200 bar
Overload 250 bar
Sensitivity 68 pC/bar nominal
Linearity ≤ ± 0.2 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 140 bar
0 … 200 bar
Natural frequency 50 kHz
Acceleration sensitivity
≤
≤
0.002 bar/g
0.003 bar/g
axial, water
cooled
axial, uncooled
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 18 pF
Sensor operating temperature
20 … 80 °C
range 1) Thermal sensitivity change
≤ 0.02 %/ °C
(cooled)
20 … 80 °C and
0 … 200 bar
Load change drift 4 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.35 bar
Thermo shock error Δp 3) ≤ ± 0.2 bar typ.
Thread diameter M14×1.25 shoulder sealed
Cable Connection 10-32 UNF Micro-Dot
Cooling rate ≥ 20 l/h
Weight 34 grams without cable
Mounting torque 20 Nm using SF01
SCOPE OF SUPPLY
Sensor QC43D
Piezo-input cable CI04-1
Coupling E127M
Gasket SG05
Accessory kit (protection cap + 2 o-rings)
Spare gasket SG05
Calibration sheet
Documentation
