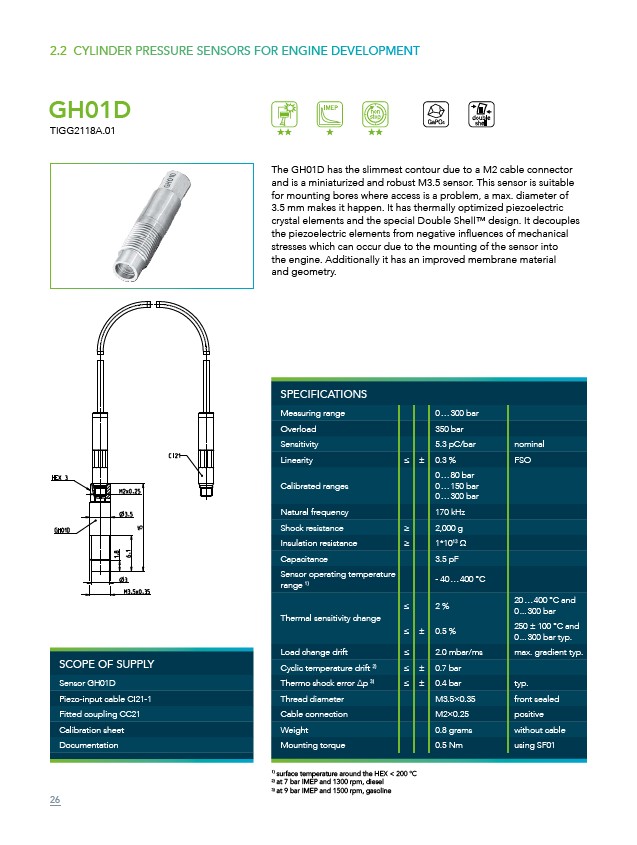

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GH01D
TIGG2118A.01
The GH01D has the slimmest contour due to a M2 cable connector
and is a miniaturized and robust M3.5 sensor. This sensor is suitable
for mounting bores where access is a problem, a max. diameter of
3.5 mm makes it happen. It has thermally optimized piezoelectric
crystal elements and the special Double Shell™ design. It decouples
the piezoelectric elements from negative influences of mechanical
stresses which can occur due to the mounting of the sensor into
the engine. Additionally it has an improved membrane material
and geometry.
SCOPE OF SUPPLY
Sensor GH01D
Piezo-input cable CI21-1
Fitted coupling CC21
Calibration sheet
Documentation
SPECIFICATIONS
Measuring range 0 … 300 bar
Overload 350 bar
Sensitivity 5.3 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1300 rpm, diesel
3) at 9 bar IMEP and 1500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 170 kHz
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 3.5 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
2 %
0.5 %
20 … 400 °C and
0 ... 300 bar
250 ± 100 °C and
0 ... 300 bar typ.
Load change drift ≤ 2.0 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.7 bar
Thermo shock error Δp 3) ≤ ± 0.4 bar typ.
Thread diameter M3.5×0.35 front sealed
Cable connection M2×0.25 positive
Weight 0.8 grams without cable
Mounting torque 0.5 Nm using SF01
