Pressure Sensors
ACCESSORIES
Cables & couplings CI41, CI42, CC41, CC42, E124 See pages 100 to 105
Cable mounting tool TC01 TIWG0131A.01 See page 95
Gasket SG20 TIBQ0231A.01 See page 98
Gasket dismounting tool TT15 TIWG0179A.01 See page 96
Dummy DG06 TIWG0188A.01 See page 91
Dummy removal tool TD01 TIWG0122A.01 See page 96
Adaptor sleeves AH14, AH18 See page 87
Mounting tool
Mounting socket TT07 (ø=15.8 mm)
Mounting tool Z314 (ø=13.8 mm)
Torque wrench TT18
TIWG0133A.01
TIWG0103A.01
TIWG0209A.01
See pages 94 to 97
Machining tool Tap drill MT31 TIWG0156A.01 See pages 92 to 93
Mounting paste SF01 TIHK0094A.01 See page 96
Cooling system
ZP91.00/1-4 (230 V version)
ZP91.00/1-8 (230 V version)
ZP91.00/1-4 (115 V version)
ZP91.00/1-8 (120 V version)
ZP93/1-8 (230 V version)
TIZP91A.04
TIZP91A.08
TIZP91A.14
TIZP91A.28
TIZP93A.08
See pages 106 to 107

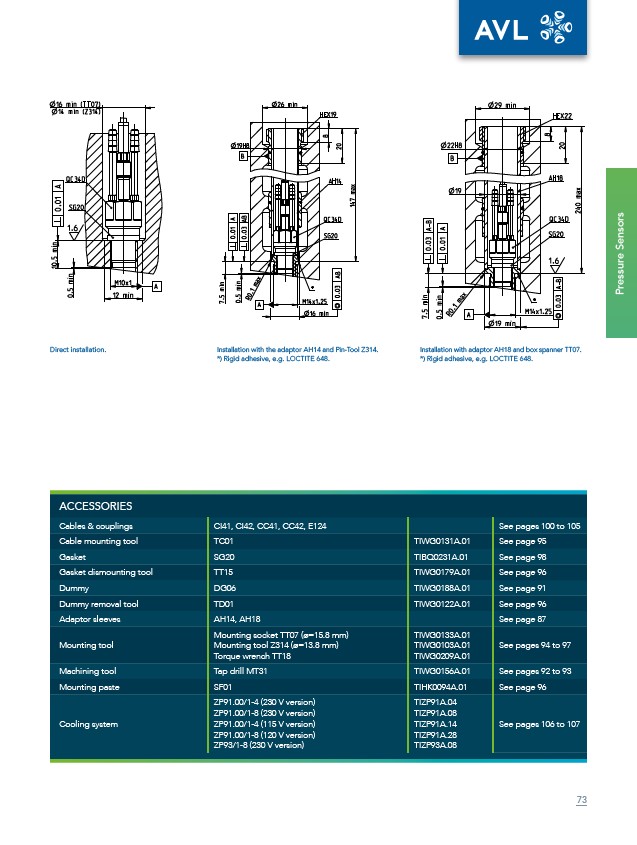

Direct installation. Installation with the adaptor AH14 and Pin-Tool Z314.
*) Rigid adhesive, e.g. LOCTITE 648.
Installation with adaptor AH18 and box spanner TT07.
*) Rigid adhesive, e.g. LOCTITE 648.
73
