Pressure Sensors

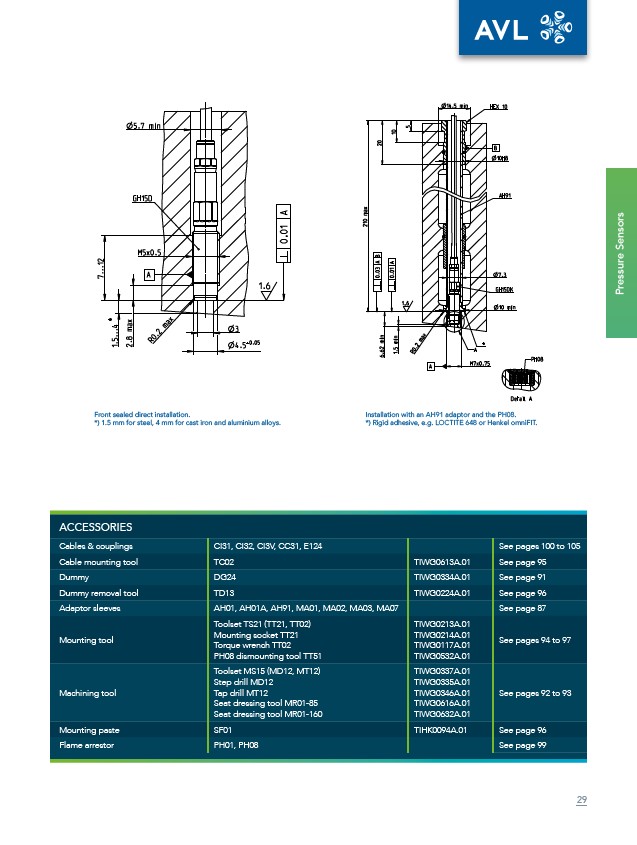

Front sealed direct installation.
*) 1.5 mm for steel, 4 mm for cast iron and aluminium alloys.
Installation with an AH91 adaptor and the PH08.
*) Rigid adhesive, e.g. LOCTITE 648 or Henkel omniFIT.
ACCESSORIES
Cables & couplings CI31, CI32, CI3V, CC31, E124 See pages 100 to 105
Cable mounting tool TC02 TIWG0613A.01 See page 95
Dummy DG24 TIWG0334A.01 See page 91
Dummy removal tool TD13 TIWG0224A.01 See page 96
Adaptor sleeves AH01, AH01A, AH91, MA01, MA02, MA03, MA07 See page 87
Mounting tool
Toolset TS21 (TT21, TT02)
Mounting socket TT21
Torque wrench TT02
PH08 dismounting tool TT51
TIWG0213A.01
TIWG0214A.01
TIWG0117A.01
TIWG0532A.01
See pages 94 to 97
Machining tool
Toolset MS15 (MD12, MT12)
Step drill MD12
Tap drill MT12
Seat dressing tool MR01-85
Seat dressing tool MR01-160
TIWG0337A.01
TIWG0335A.01
TIWG0346A.01
TIWG0616A.01
TIWG0632A.01
See pages 92 to 93
Mounting paste SF01 TIHK0094A.01 See page 96
Flame arrestor PH01, PH08 See page 99
29
