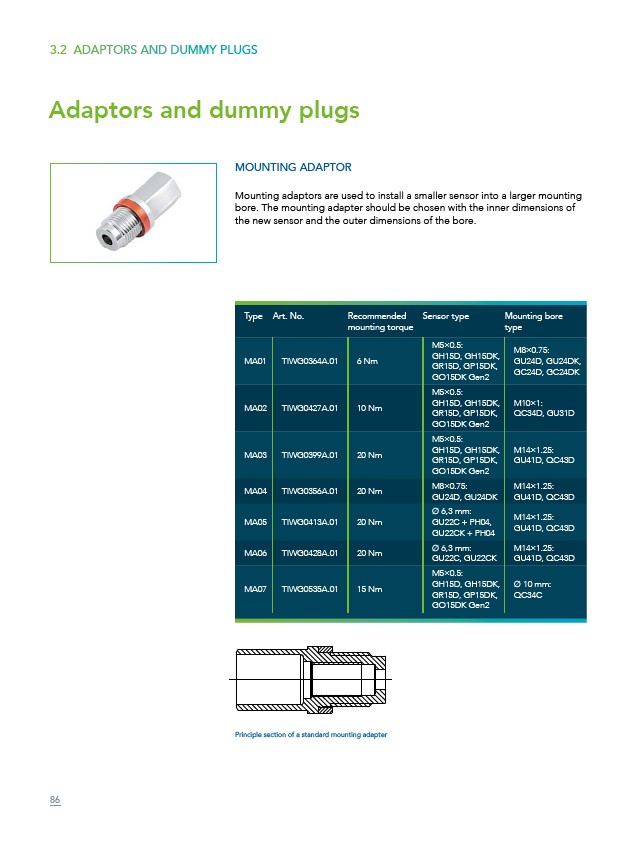

3.2 ADAPTORS AND DUMMY PLUGS
Adaptors and dummy plugs
MOUNTING ADAPTOR
Mounting adaptors are used to install a smaller sensor into a larger mounting
bore. The mounting adapter should be chosen with the inner dimensions of
the new sensor and the outer dimensions of the bore.
Type Art. No. Recommended
mounting torque
Sensor type Mounting bore
type
MA01 TIWG0364A.01 6 Nm
M5×0.5:
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2
M8×0.75:
GU24D, GU24DK,
GC24D, GC24DK
MA02 TIWG0427A.01 10 Nm
M5×0.5:
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2
M10×1:
QC34D, GU31D
MA03 TIWG0399A.01 20 Nm
M5×0.5:
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2
M14×1.25:
GU41D, QC43D
MA04 TIWG0356A.01 20 Nm
M8×0.75:
GU24D, GU24DK
M14×1.25:
GU41D, QC43D
MA05 TIWG0413A.01 20 Nm
Ø 6,3 mm:
GU22C + PH04,
GU22CK + PH04
M14×1.25:
GU41D, QC43D
MA06 TIWG0428A.01 20 Nm
Ø 6,3 mm:
GU22C, GU22CK
M14×1.25:
GU41D, QC43D
MA07 TIWG0535A.01 15 Nm
M5×0.5:
GH15D, GH15DK,
GR15D, GP15DK,
GO15DK Gen2
Ø 10 mm:
QC34C
Principle section of a standard mounting adapter
