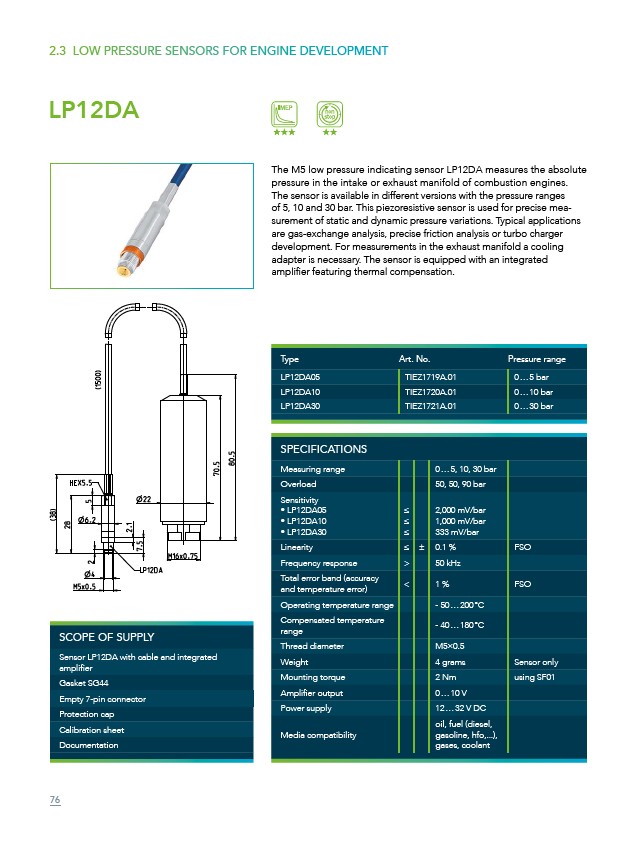

2.3 LOW PRESSURE SENSORS FOR ENGINE DEVELOPMENT
LP12DA
The M5 low pressure indicating sensor LP12DA measures the absolute
pressure in the intake or exhaust manifold of combustion engines.
The sensor is available in different versions with the pressure ranges
of 5, 10 and 30 bar. This piezoresistive sensor is used for precise measurement
of static and dynamic pressure variations. Typical applications
are gas-exchange analysis, precise friction analysis or turbo charger
development. For measurements in the exhaust manifold a cooling
adapter is necessary. The sensor is equipped with an integrated
amplifier featuring thermal compensation.
SPECIFICATIONS
Measuring range 0 … 5, 10, 30 bar
Overload 50, 50, 90 bar
Sensitivity
• LP12DA05
≤
2,000 mV/bar
• LP12DA10
≤
1,000 mV/bar
• LP12DA30
≤
333 mV/bar
Linearity ≤ ± 0.1 % FSO
Frequency response > 50 kHz
Total error band (accuracy
and temperature error)
< 1 % FSO
Operating temperature range - 50 … 200 °C
Compensated temperature
- 40 … 180 °C
range
Thread diameter M5×0.5
Weight 4 grams Sensor only
Mounting torque 2 Nm using SF01
Amplifier output 0 … 10 V
Power supply 12 … 32 V DC
Media compatibility
oil, fuel (diesel,
gasoline, hfo,...),
gases, coolant
SCOPE OF SUPPLY
Sensor LP12DA with cable and integrated
amplifier
Gasket SG44
Empty 7-pin connector
Protection cap
Calibration sheet
Documentation
Type Art. No. Pressure range
LP12DA05 TIEZ1719A.01 0 … 5 bar
LP12DA10 TIEZ1720A.01 0 … 10 bar
LP12DA30 TIEZ1721A.01 0 … 30 bar
