Other Sensors
Technical insight
The optical function of the encoder is based
on a slot mark disk, utilizes the reflection
light principle and provides one Trigger
and 720 CDM-signals per revolution. It is
the most commonly used system in engine
indicating technology. The electronic components
are mounted separately off the
sensor head at the crank shaft to minimize
the influence of vibration, temperature and
electrical interference to the electronics.

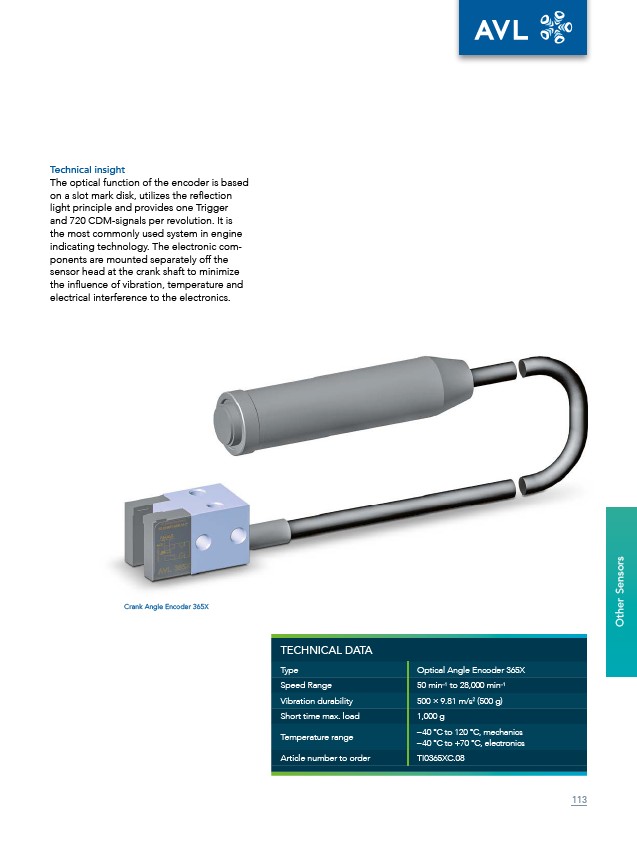

Crank Angle Encoder 365X
TECHNICAL DATA
Type Optical Angle Encoder 365X
Speed Range 50 min–1 to 28,000 min–1
Vibration durability 500 × 9.81 m/s2 (500 g)
Short time max. load 1,000 g
Temperature range
– 40 °C to 120 °C, mechanics
– 40 °C to +70 °C, electronics
Article number to order TI0365XC.08
