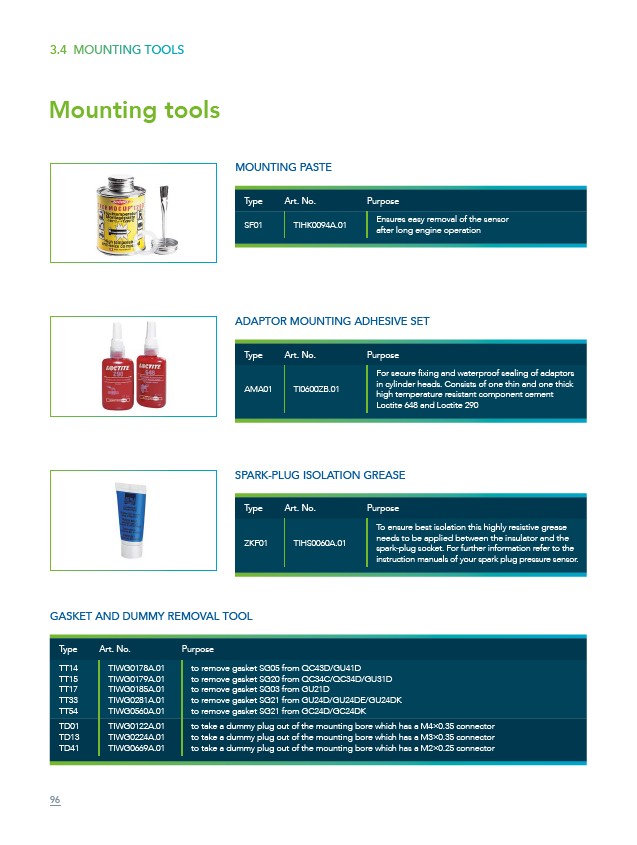

Mounting tools
MOUNTING PASTE
Type Art. No. Purpose
SF01 TIHK0094A.01
ADAPTOR MOUNTING ADHESIVE SET
SPARK-PLUG ISOLATION GREASE
GASKET AND DUMMY REMOVAL TOOL
Ensures easy removal of the sensor
after long engine operation
Type Art. No. Purpose
AMA01 TI0600ZB.01
For secure fixing and waterproof sealing of adaptors
in cylinder heads. Consists of one thin and one thick
high temperature resistant component cement
Loctite 648 and Loctite 290
Type Art. No. Purpose
ZKF01 TIHS0060A.01
To ensure best isolation this highly resistive grease
needs to be applied between the insulator and the
spark-plug socket. For further information refer to the
instruction manuals of your spark plug pressure sensor.
Type Art. No. Purpose
TT14
TIWG0178A.01
TT15
TIWG0179A.01
TT17
TIWG0185A.01
TT33
TIWG0281A.01
TT54
TIWG0560A.01
to remove gasket SG05 from QC43D/GU41D
to remove gasket SG20 from QC34C/QC34D/GU31D
to remove gasket SG03 from GU21D
to remove gasket SG21 from GU24D/GU24DE/GU24DK
to remove gasket SG21 from GC24D/GC24DK
TD01
TD13
TD41
TIWG0122A.01
TIWG0224A.01
TIWG0669A.01
to take a dummy plug out of the mounting bore which has a M4×0.35 connector
to take a dummy plug out of the mounting bore which has a M3×0.35 connector
to take a dummy plug out of the mounting bore which has a M2×0.25 connector
3.4 MOUNTING TOOLS
96
