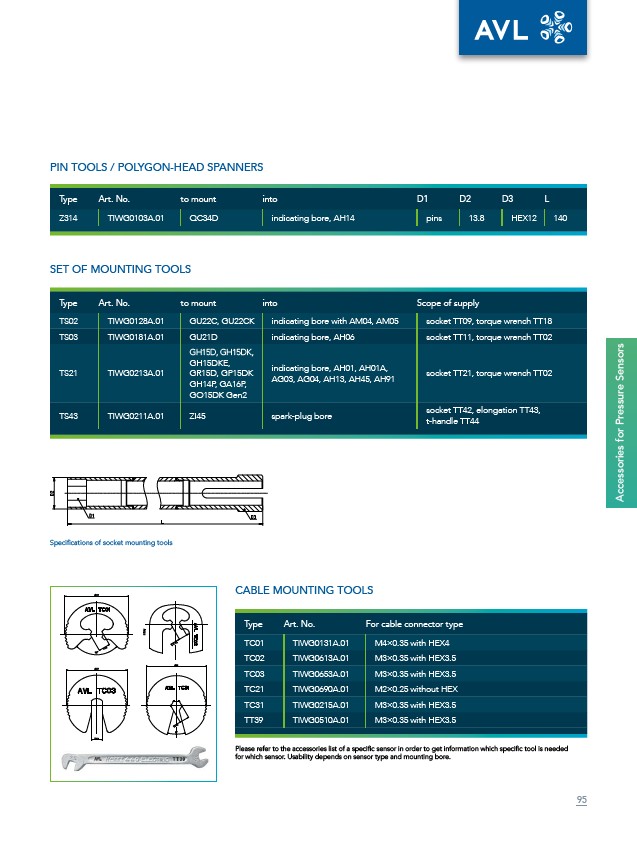

Accessories for Pressure Sensors
PIN TOOLS / POLYGON-HEAD SPANNERS
Type Art. No. to mount into D1 D2 D3 L
Z314 TIWG0103A.01 QC34D indicating bore, AH14 pins 13.8 HEX12 140
Type Art. No. to mount into Scope of supply
TS02 TIWG0128A.01 GU22C, GU22CK indicating bore with AM04, AM05 socket TT09, torque wrench TT18
TS03 TIWG0181A.01 GU21D indicating bore, AH06 socket TT11, torque wrench TT02
Please refer to the accessories list of a specific sensor in order to get information which specific tool is needed
for which sensor. Usability depends on sensor type and mounting bore.
Specifications of socket mounting tools
CABLE MOUNTING TOOLS
SET OF MOUNTING TOOLS
Type Art. No. For cable connector type
TC01 TIWG0131A.01 M4×0.35 with HEX4
TC02 TIWG0613A.01 M3×0.35 with HEX3.5
TC03 TIWG0653A.01 M3×0.35 with HEX3.5
TC21 TIWG0690A.01 M2×0.25 without HEX
TC31 TIWG0215A.01 M3×0.35 with HEX3.5
TT39 TIWG0510A.01 M3×0.35 with HEX3.5
TS21 TIWG0213A.01
GH15D, GH15DK,
GH15DKE,
GR15D, GP15DK
GH14P, GA16P,
GO15DK Gen2
indicating bore, AH01, AH01A,
AG03, AG04, AH13, AH45, AH91
socket TT21, torque wrench TT02
TS43 TIWG0211A.01 ZI45 spark-plug bore
socket TT42, elongation TT43,
t-handle TT44
95
