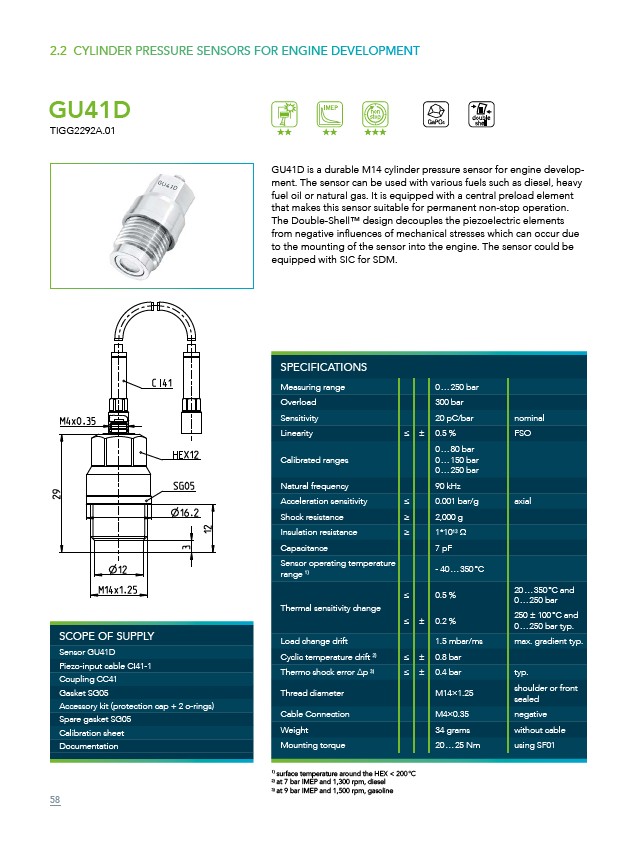

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GU41D
TIGG2292A.01
GU41D is a durable M14 cylinder pressure sensor for engine development.
The sensor can be used with various fuels such as diesel, heavy
fuel oil or natural gas. It is equipped with a central preload element
that makes this sensor suitable for permanent non-stop operation.
The Double-Shell™ design decouples the piezoelectric elements
from negative influences of mechanical stresses which can occur due
to the mounting of the sensor into the engine. The sensor could be
equipped with SIC for SDM.
SPECIFICATIONS
Measuring range 0 … 250 bar
Overload 300 bar
Sensitivity 20 pC/bar nominal
Linearity ≤ ± 0.5 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 250 bar
Natural frequency 90 kHz
Acceleration sensitivity ≤ 0.001 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 7 pF
Sensor operating temperature
range 1) - 40 … 350 °C
Thermal sensitivity change
≤
≤ ±
0.5 %
0.2 %
20 … 350 °C and
0 … 250 bar
250 ± 100 °C and
0 … 250 bar typ.
Load change drift 1.5 mbar/ms max. gradient typ.
Cyclic temperature drift 2) ≤ ± 0.8 bar
Thermo shock error Δp 3) ≤ ± 0.4 bar typ.
Thread diameter M14×1.25
shoulder or front
sealed
Cable Connection M4×0.35 negative
Weight 34 grams without cable
Mounting torque 20 … 25 Nm using SF01
SCOPE OF SUPPLY
Sensor GU41D
Piezo-input cable CI41-1
Coupling CC41
Gasket SG05
Accessory kit (protection cap + 2 o-rings)
Spare gasket SG05
Calibration sheet
Documentation
