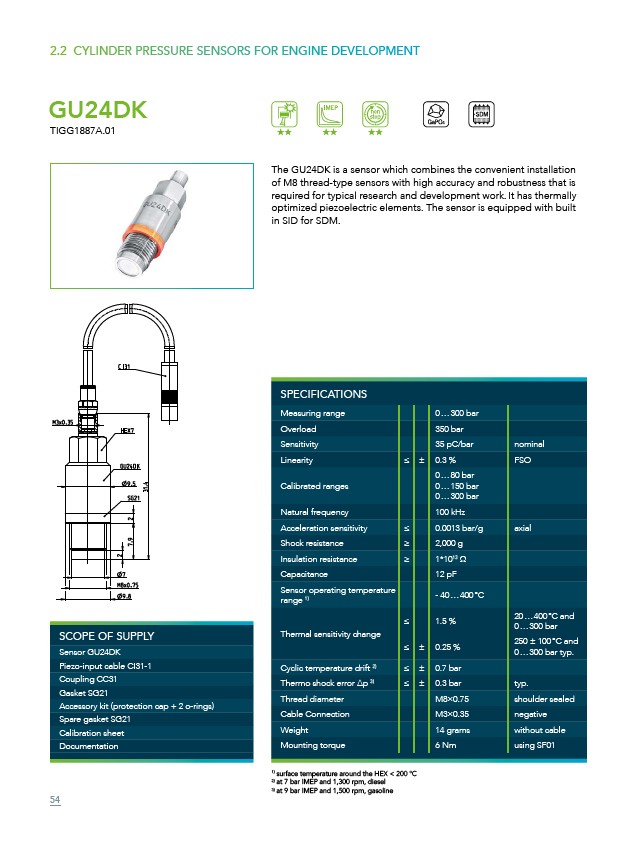

2.2 CYLINDER PRESSURE SENSORS FOR ENGINE DEVELOPMENT
GU24DK
TIGG1887A.01
The GU24DK is a sensor which combines the convenient installation
of M8 thread-type sensors with high accuracy and robustness that is
required for typical research and development work. It has thermally
optimized piezoelectric elements. The sensor is equipped with built
in SID for SDM.
SPECIFICATIONS
Measuring range 0 … 300 bar
Overload 350 bar
Sensitivity 35 pC/bar nominal
Linearity ≤ ± 0.3 % FSO
Calibrated ranges
1) surface temperature around the HEX < 200 °C
2) at 7 bar IMEP and 1,300 rpm, diesel
3) at 9 bar IMEP and 1,500 rpm, gasoline
0 … 80 bar
0 … 150 bar
0 … 300 bar
Natural frequency 100 kHz
Acceleration sensitivity ≤ 0.0013 bar/g axial
Shock resistance ≥ 2,000 g
Insulation resistance ≥ 1*1013 Ω
Capacitance 12 pF
Sensor operating temperature
range 1) - 40 … 400 °C
Thermal sensitivity change
≤
≤ ±
1.5 %
0.25 %
20 … 400 °C and
0 … 300 bar
250 ± 100 °C and
0 … 300 bar typ.
Cyclic temperature drift 2) ≤ ± 0.7 bar
Thermo shock error Δp 3) ≤ ± 0.3 bar typ.
Thread diameter M8×0.75 shoulder sealed
Cable Connection M3×0.35 negative
Weight 14 grams without cable
Mounting torque 6 Nm using SF01
SCOPE OF SUPPLY
Sensor GU24DK
Piezo-input cable CI31-1
Coupling CC31
Gasket SG21
Accessory kit (protection cap + 2 o-rings)
Spare gasket SG21
Calibration sheet
Documentation
