advanced simulation technologies
SIMULATION
MAKES IT POSSIBLE:
THERMAL STABILITY
OF ELECTRIC MOTORS
One of the biggest challenges in powertrain electrification is the thermal design of its components. With the 3D
CFD software AVL FIRE™ M, used in combination with the system engineering software AVL CRUISE™ M,
AVL is offering a unique solution for the consistent thermal design of electric motors. From individual components
to cooling circuit integration.
1 8 DECEMBER 2018

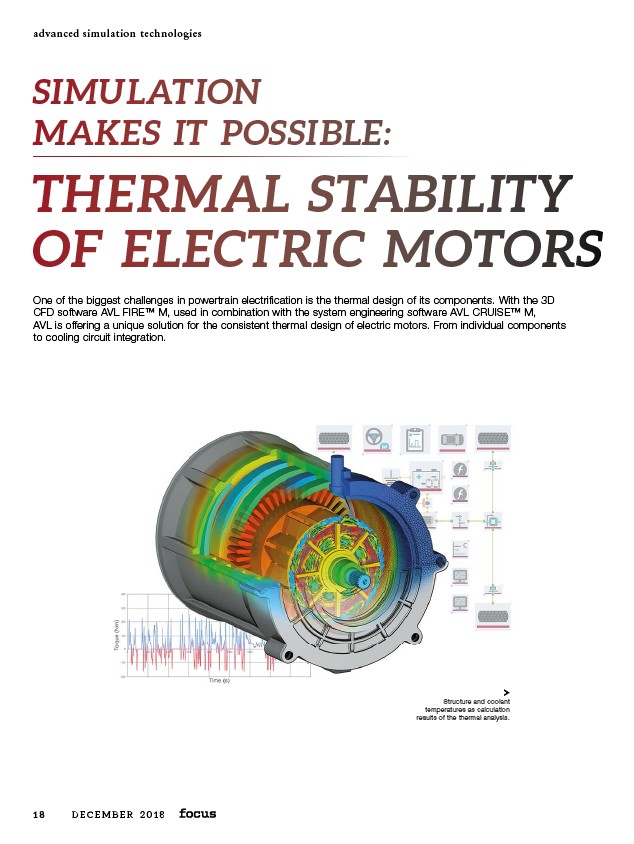

Structure and coolant
temperatures as calculation
results of the thermal analysis.
