Product

AVL M.O.V.E iS+

The global RDE testing solution

The in-vehicle measurement platform supporting all global Real Driving Emission (RDE) test requirements and the upcoming Euro 7 legislation.

AVL M.O.V.E iS+

With global emission legislation and RDE requirements becoming stricter all the time, there is a growing need for a versatile, comprehensive PEMS (Portable Emission Measurement System) solution. OEMs need to react to a rapidly changing global legal framework and our M.O.V.E platform has become the industry standard to enable this agility. The latest version of our market-leading Real Driving Emission testing solution, AVL M.O.V.E iS+, now caters for both light and heavy-duty vehicle testing. Designed to meet global testing standards, it is a single platform for every on-road application worldwide.

Global legislation and Real Driving Emissions (RDE) requirements are becoming stricter all the time, so automotive manufacturers need to be agile enough in their development process to accommodate these changes quickly if they want to operate on a global level. This makes keeping abreast of the changing legislative landscape and choosing the right supplier for testing solutions more important than ever.

WORLDWIDE INTRODUCTION OF RDE As RDE has its focus on real driving situations in the addressed market, it is clear that there will be different requirements coming from different regions. Light duty RDE testing focusses on nitrogen oxides (NOx) emissions and particle number (PN), while heavy-duty testing also includes limits for total hydrocarbons (THC) and methane (CH4), which are crucial for LPG or CNG Engines. The upcoming Euro 7 emission regulation will raise the bar for the challenge of Real Driving Emissions (RDE) development and testing. A reduction of existing limits and “new” limits are expected such as NH3 and THC/ NMHC for Light Duty Vehicles and N2O, HCHO and NMOG for Heavy Duty Vehicles. The particle number (PN) limit will be for 10nm particles instead of 23nm.

MOVE iS+

AVL M.O.V.E iS+ Redefines the Industry Standard

AVL M.O.V.E iS+ System has been designed to support all the different needs of global RDE regulations and applications, including passenger car and heavy-duty truck with a single versatile system.
An evolution of the M.O.V.E portfolio, it includes state-of-the-art central data management, gaseous emission and exhaust flow measurement, particulate counting and data post-processing. Supporting low-emission vehicle development with optional features such as fuel consumption measurement, energy balance for evaluation modern hybrids, and transient soot measurement for engine-out optimization, its versatile modularity enables it to be tailored to your specific needs.

Needless to say that PEMS solutions need to be robust and scalable to cover all these aspects and also need to allow the smooth exchange of data between different testing environments to enable the most efficient RDE development process.

Systems
Overview
Gas PEMS iS+      Measures NO/NO2, CO/CO2 and N2O (option)
GAS ADVANCED Measures NO/NO2, CO/CO2 and optionally N2O with
special focus on high accuracy at the low NOx range
FID iS+                    Measures THC and CH4 concentrations in the exhaust
gas
M.O.V.E NH3 PEMS Measures NH3 concentrations in the exhaust gas
M.O.V.E FT Measures NH3, N2O, CH4 and HCHO and optionally
CO, CO2, NO/NO2 and many others
PN PEMS iS / iS+ Measures Particle number emissions [#/cm³] of solid particles under real driving conditions
System Control

A robust and flexible platform for central device
integration and data acquisition

M.O.V.E EFM

Installed on vehicle's tailpipe for accurate measurements
at high pulsating and low flow conditions



MOVE iS+

Ease of use, flexibility of installation, and robustness and reliability of results make this the preferred solution for both RDE certification and research and development.

Ease of Use

Flexible mounting inside or outside the vehicle. Easy integration of different devices and test execution via a central control and data logging unit. Central power supply distribution solutions support different battery technologies.

Flexibility of Installation

All aspects of RDE testing are considered including workflow support from the test preparation, test execution, data evaluation and data management.

Application-Focused Design

No influence on the vehicle under test. High accuracy and stability of the measurement results over changing ambient conditions.

Safeguarding Investment

Reasonable modularity, extendibility, and completeness – global RDE regulations (Passenger Car and Heavy-Duty Truck) are supported. Future-proof features like N2O and CH4 measurement.

Reliable Partner

AVL supports customers across the entire RDE workflow including engineering and testing services, test bed systems and portable measurement systems.

AVL M.O.V.E GAS PEMS iS+

The GAS PEMS iS+ is designed to measure the NO/NO2, CO/CO2 and optional N2O concentrations within the exhaust gas of diesel and gasoline LDV on the road. For HDV applications the GAS PEMS HD (incl. THC) and GAS PEMS iX (incl. THC and CH4) are available.

AVL M.O.V.E GAS ADVANCED

The AVL M.O.V.E Gas ADVANCED features a new Low NOx NDUV analyzer to ensure highest accuracy and a low drift at the low NOx range. With this a further reduction of the NOx measurement uncertainty is supported. The device is an alternative of the GAS PEMS iS+ and uses the same accessories.

AVL M.O.V.E FID iS+

The AVL M.O.V.E FID iS+ is a PEMS for measuring the THC and CH4 concentrations in the exhaust gas of vehicles. It is especially optimized regarding robustness for in-vehicle application, easy operation and a flexible installation.

AVL M.O.V.E NH3 PEMS

The AVL M.O.V.E NH3 PEMS uses robust laser diode spectroscopy to measure the NH3 concentration during RDE. The device has been developed to address the upcoming Euro7 requirements and is an extension of the M.O.V.E iS+ system.

AVL M.O.V.E FT

The AVL M.O.V.E FT is based on an FTIR spectrometer that simultaneously measures multiple pre-calibrated exhaust gas components. The device has been developed to address the upcoming Euro7 requirements and may be used stand alone or as an extension to a M.O.V.E iS+ system.

AVL M.O.V.E PN PEMS iS / iS+

The AVL M.O.V.E PN PEMS iS / iS+ ensures the highest reproducibility with minimal particle losses. The device continuously measures the particle number emissions [#/cm³] of solid particles under real driving conditions.

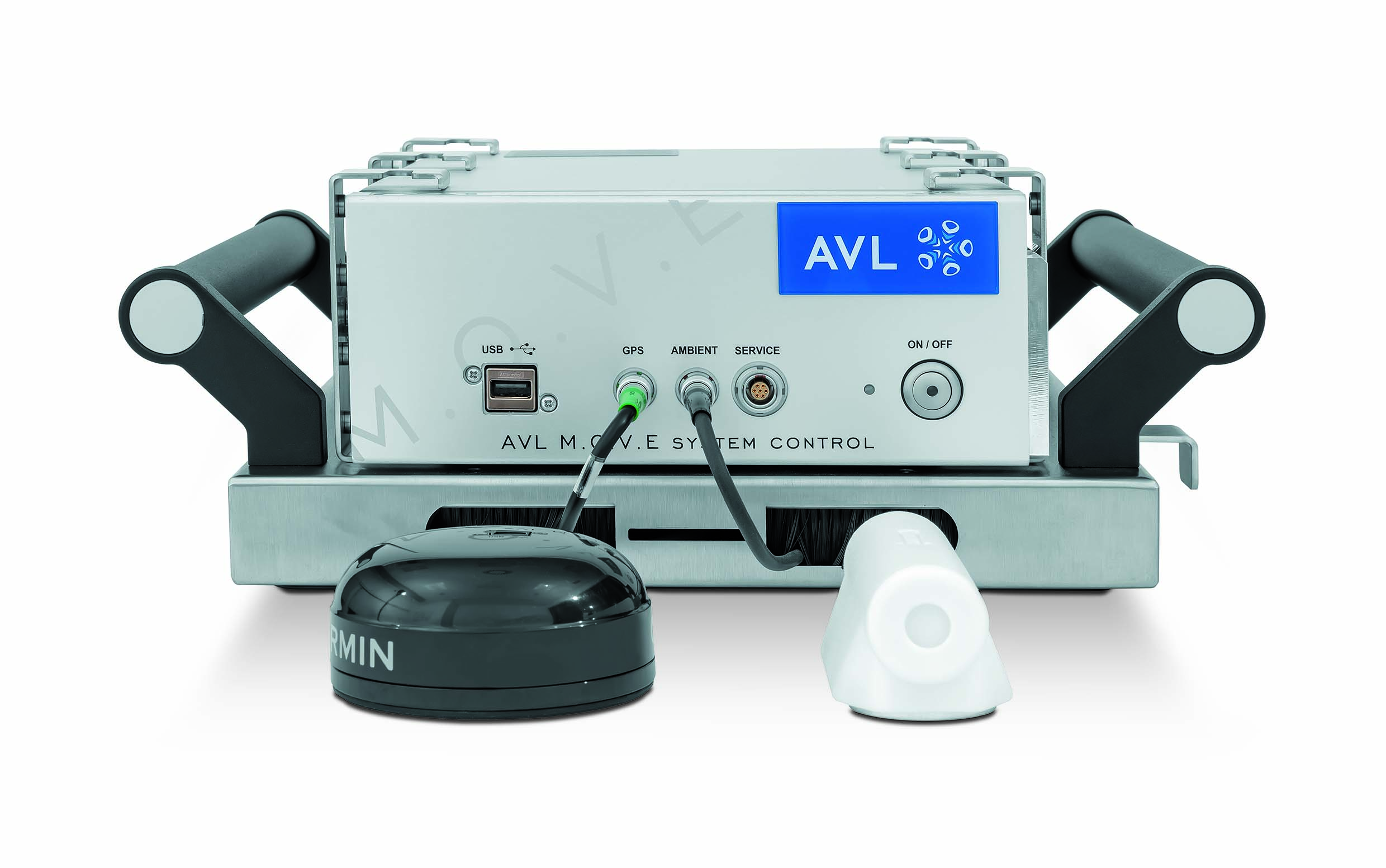

AVL M.O.V.E SYSTEM CONTROL ADVANCED

AVL M.O.V.E System Control Advanced is a next-gen platform with enhanced capabilities that simplifies calibration with integrated external ambient sensors. It is a robust, central device integration and data acquisition tool ensuring valid measurements via automated checks and workflows for PEMS and in-vehicle tests.

AVL M.O.V.E DATA TOOLBOX 2

The M.O.V.E Data Toolbox 2 is a powerful software add-on for AVL CONCERTO 6™, the AVL data post-processing platform. It supports different global “real world emission” regulations and applications.

AVL M.O.V.E EFM

The AVL M.O.V.E EFM is based on the proven and robust “differential pressure” measurement principle. It consists of the EFM tube which is installed on the tailpipe of the vehicle and the EFM control box which includes the electronics and the pressure transducers.

Brochure AVL M.O.V.E iS+
The in-vehicle measurement platform supporting all global Real Driving Emission (RDE) test requirements
Download
Customer Success Story AVL M.O.V.E HMC
Hyundai placed the largest order ever of AVL’s M.O.V.E iS RDE systems.
Download
Solution Sheet AVL M.O.V.E System Control
The powerful integration platform for your RDE testing needs.
Download
Solution Sheet AVL M.O.V.E System Control Advanced

The powerful integration platform for your RDE and in-vehicle testing needs.

Download
Solution Sheet AVL M.O.V.E GAS PEMS
Portable Exhaust Gas Analyzer
Download
Solution Sheet AVL M.O.V.E Gas Advanced

Portable emission measurement system for the upcoming Euro7 legislation.

Download
Solution Sheet AVL M.O.V.E FID iS+
The Portable Emission Measurement System for THC and CH4
Download
Solution Sheet AVL M.O.V.E PN PEMS iS+

ISC-compliant portable emission measurement system for particle number testing heavy duty.

Download
Solution Sheet AVL M.O.V.E EFM

Exhaust Flow Meter

Download
Solution Sheet AVL M.O.V.E Concerto Toolbox
Toolbox for efficient and flexible PEMS data post-processing.
Download
Solution Sheet AVL PEMS Data Management
AVL solution for next level RDE testing and certification.
Download
Solution Sheet AVL M.O.V.E Quality Station
Supports automated calibration and checks of AVL M.O.V.E Portable Emission Devices.
Download
Solution Sheet AVL M.O.V.E NH3

AVL M.O.V.E iS+ Extension - Highly accurate and robust NH3 measurement for in-vehicle application.

Download
Solution Sheet AVL M.O.V.E FT

Multi component emission measurement system. First compact and lightweight FTIR analyzer for real driving emissions testing.

Download
